High Temperature Chip Resistors

Panasonic’s ERJ-Hxx Series Automotive Grade Thick Film Chip Resistors feature a maximum Category Temperature of 175°C and a maximum Rated Operating Temperature of 105°C. The ERJ-Hxx Series is AEC-Q200 compliant, ensuring strict quality control standards are in place to enforce optimal quality and reliability. The ERJ-Hxx Series Resistors offer a small size, higher power Resistor alternative that provides enhanced flexibility of PCB design by reducing solder-joint crack risk. This series is ideal for use in automotive, ICT, general industrial applications, and more.

Features and Benefits:

  • Highly Reliable Due to Panasonic’s Metal Glaze Thick Film Resistive Element and High Temperature Electrodes Structure
  • Category Temperature: -55°C to 175°C
  • Maximum Operating Temperature: 155°C to 175°C
  • Rated Operating Temperature: 70°C to 105°C
  • Smaller Size, Higher Power Alternatives
  • High Joint Reliability
  • Tape Packaging Available for Compatibility with Placement Machines
  • Suitable for Both Reflow and Flow Soldering
  • RoHS / REACH Compliant
  • Reference Standards: IEC 60115-8, JIS C 5201-8 and JEITA RC-2134C
  • AEC-Q200 Compliance Ensures Strict Quality Control Standards Are Being Enforced
Series image for High Temperature Chip Resistors

High Temperature Chip Resistors

Part number list

Results 3933
Models table for series High Temperature Chip Resistors
Part No.DatasheetPower Rating (W)Chip Size (LxW) (mm)Resistance Values (Ω)Resistance Tolerance (%)PackagingT.C.R (×10⁻⁶/K)Weight (Typ.) (mg)
ERJH2CF1R00X
0.1
1.0 x 0.5 (EIA:0402)
1
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R40X
0.1
1.0 x 0.5 (EIA:0402)
1.4
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R07X
0.1
1.0 x 0.5 (EIA:0402)
1.07
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R20X
0.1
1.0 x 0.5 (EIA:0402)
1.2
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R47X
0.1
1.0 x 0.5 (EIA:0402)
1.47
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R10X
0.1
1.0 x 0.5 (EIA:0402)
1.1
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R24X
0.1
1.0 x 0.5 (EIA:0402)
1.24
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R02X
0.1
1.0 x 0.5 (EIA:0402)
1.02
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R15X
0.1
1.0 x 0.5 (EIA:0402)
1.15
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
ERJH2CF1R18X
0.1
1.0 x 0.5 (EIA:0402)
1.18
1
Punched (Paper) Taping (2mm Pitch)
-100 to +600
0.8
AEC-Q200 Selection Guide
An AEC-Q200 Compliant Series

Panasonic components specified as AEC-Q200 Compliant are consistently designed into automotive systems.  However, today’s Design Engineers are specifying AEC-Q200 components to meet the high-quality standards of devices beyond automotive applications.

Parts that pass the AEC tests are qualified, high-quality components that can be used in critical environments.  Therefore, there should be no need to conduct other component level tests saving both time and expense.

Current AEC-Q200 Standard documents developed by the AEC Component Technical Committee are available on the AEC website. The AEC is an organization based in the U.S. that sets qualification standards for the supply of components in the automotive electronics industry.

If your next device requires components that meet the Automotive Electronics Council (AEC) requirements for components suitable for harsh automotive environments, think Panasonic!

Download a complete list of Panasonic AEC-Q200 Compliant Component Series and specify reliably!

DOWNLOAD NOW
What's New

Stay up to date

View All
ERJ-Hxx Series Automotive Grade, High Temperature Thick Film Chip Resistors
Jan 19, 2021

ERJ-Hxx Series Automotive Grade, High Temperature Thick Film Chip Resistors

Resistors
Latest Videos

Playlist

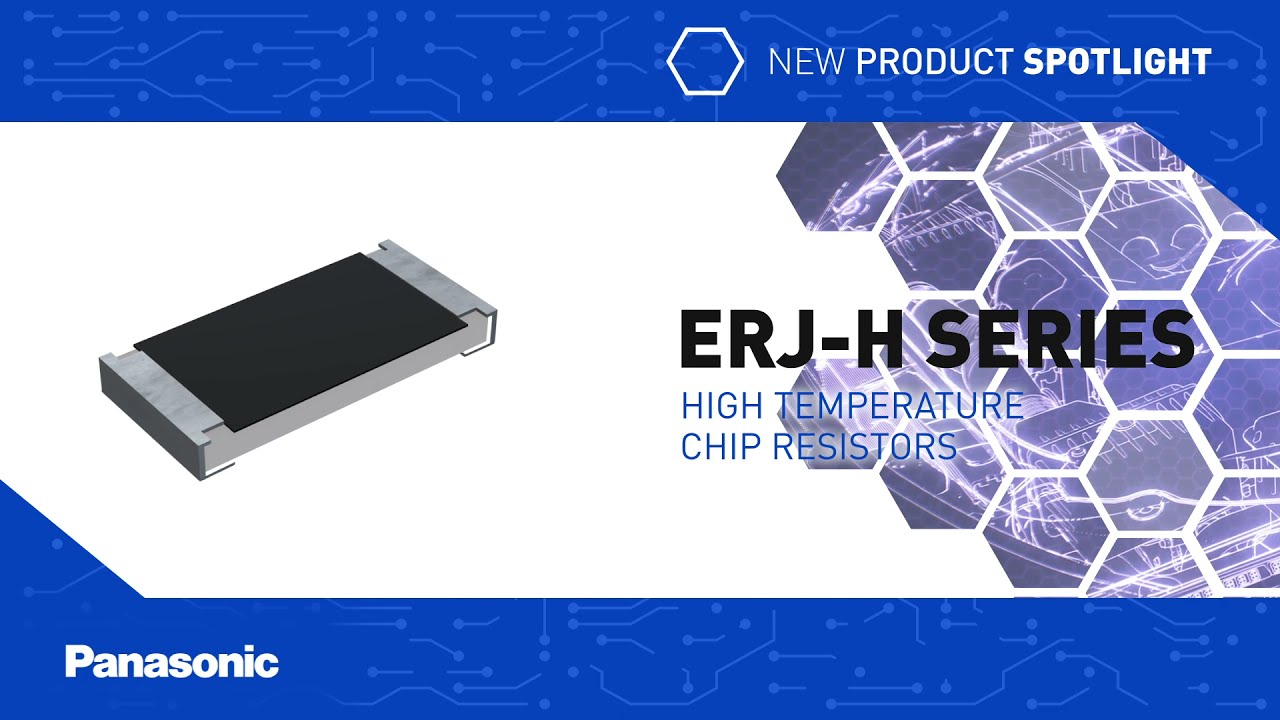

Thumbnail for New Product Spotlight: ERJ-H Series High Temperature Chip Resistors
