An Available Lens Option For Any Application!

Panasonic Passive Infrared or Pyroelectric PIR Motion Sensors are available in a wide variety of current consumption options and offer both digital and analog output options. Both the EKMB and EKMC Series offer many lens options suitable for various applications, detection distance, ceiling installation height, field of view, and detection zone requirements. The EKMB and EKMC Series lens type options include Standard Detection, Long Distance, Wall Installation, Saturn Lens (Standard and Slight Detection), Wide Field of View, High Density/Long Distance, Slight Motion, Low Profile, Wide Area Detection, Ultra Slight Motion, and Flat Square lens types. Most lenses are available in white, black, or pearl white.

Offering simplified circuitry with a fully integrated Sensor design, Panasonic's EKMB Series requires consumption as low as 1micro A current, which is suitable for battery-driven wireless equipment. The EKMC Series is suitable for battery-free devices at a standard current consumption of 170micro A and is available in standard, high, and low detection sensitivities.

The latest PIR Motion Sensor lens design type options include the new "Flat Square Lens" offering a low profile in various detection zones and the new "Wide Area Detection" Type offering a wide detection spanning over 10.8 meters as well as the new "Ultra Slight Motion" Type with improved sensitivity.

PIR Motion Sensor Applications include:

  • Lighting Controls
  • Thermostats And HVAC Systems
  • Smart Home And IoT
  • IP Cameras And Surveillance Systems
  • Digital Signage And More

Interested in speaking with a PIR Sensors Expert? Contact Us Now!

PIR Motion Sensor (PaPIRs)

Series comparison (3)

EKMB (WL) Series

View series

Specifications

EKMC (VZ) Series

View series

Specifications

AMN series

View series

Specifications

The Latest PIR Sensor Lens Design Type Options

Flat Square Lens PIR Sensors Content Band

Extremely Low Profile For a Flush Design Look

Panasonic's “Flat Square Lens” Type PIR Motion Sensors offer both a low profile and flat surface granting a flush design look with the surface of the build and are available within the EKMB and EKMC Series product line up. This new lens type creates various detection zones, an optical filter to block non-infrared light, and more!

PIR Sensors - Wide Area Detection

Offers Wide Detection Spanning Over 10.8 Meters

Panasonic's "Wide Area Detection" Type PIR Motion Sensors are available within the EKMB and EKMC Series product line up. Featuring the latest lens design option, these PIR Motion Sensors are designed to provide wide area detection spanning over 10.8 meters!

PIR Sensors - Ultra Slight Motion

Offers Improved Sensitivity In Slight Motion Applications

Panasonic's "Ultra Slight Motion" Type PIR Motion Sensors are available within the EKMB and EKMC Series product line up. Featuring a new lens design option, these PIR Motion Sensors are designed to provide ultra slight motion detection. Their high signal to noise ratio ensures the prevention of false triggers.

PIR Sensors - Low Profile

A "Low Profile" 10.9mm Profile Alternative

Panasonic's "Low Profile" Type PIR Motion Sensors are available within the EKMB and EKMC Series product line up. Featuring a "Low Profile" lens design option, these PIR Motion Sensors offer a lower profile alternative to standard lens design (10.9mm versus 14.4mm height).

PIR Sensors - Wide Field of View

Offers Detection in a Single Axis up to 150 Degrees

Panasonic's "Wide Field of View" Type PIR Motion Sensors are available within the EKMB and EKMC Series product line up. Featuring a flat and rectangular shape, the "Wide Field of View" type PIR Sensors improve detection in a single axis up to 150 degrees.

PIR Sensors - Wall Mount Installation

A Field of View Optimized for Pet Immunity Applications

Panasonic's "Wall Mount Installation" Type PIR Motion Sensors are available within the EKMB and EKMC Series product line up. Named for their unique capabilities, these "Wall Mount Installation" type PIR Sensors are designed to allow wall mounting as opposed to top mounting.

New PIR Sensors Resources

Everything there is to know about Panasonic’s PIR Motion Sensors product line is now available in an easy-to-use Frequently Asked Questions brochure!

Thirty-nine (39) comprehensive pages on how to design in and use Panasonic PIR Motion Sensors make specifying these high technology products easier than ever. Operating principles, electrical connection, output signals, and in-depth product specification information are all available for easy reference.

New Blog Post: PIR Motion Sensors Technology for Low Power or How Power Applications and Lens Options

Learn how to choose the right PIR Sensor for your low power or line power application requirements and lens options. Chose the right lens by detection distance, ceiling installation height, the field of view requirements, and the number of detection zones.

Keep Up With The Latest From Panasonic

PANASONIC INDUSTRIAL'S VIDEO LIBRARY

Panasonic videos provide readily accessible insightful solutions that help make product design-in decisions effortless. Categorized by video series type, product topic, or technology, navigating to your preference couldn’t be easier. Stay up to date with the latest quick clips, product spotlights, playlists and more!

Panasonic's Monthly eNewsletter

With over 150,000 available part numbers and the technical expertise to create new solutions, Panasonic Industrial invests in partnerships with customers to build a Better Life, A Better World one component, one device, one system at a time! Join the Panasonic Community and sign up for the What's Next monthly email newsletter!

PANASONIC INDUSTRIAL'S BLOG

Read up on all the latest Industrial technology topics and explore what’s new, what matters, and how technology continues to meet the rapidly changing needs worldwide. Share and gain a new perspective on technology innovation and unique insights into the latest industry trends!

Can a single Panasonic Passive Infrared sensor detect the specific position of where person is located in an area?

View Answer

Are there any sensors with an operating voltage of 12V DC or 24V DC?

View Answer

Is it possible to design a common circuit for multiple sensors?

View Answer

What is the duration for the digital output signal during a detection?

View Answer

If a person keeps moving in the detection area, what kind of output appears from the digital output type sensor?

View Answer

Why doesn’t the sensor have a timer circuit for setting the output time?

View Answer

What is a comparator?

View Answer

What are sleep mode, standby mode, and mask mode?

View Answer

How to reinforce power source noise?

View Answer

What is the operating process for output current?

View Answer

Will the sensor detect anything beyond the “maximum distance” specified in the catalog?

View Answer

How is the detection area of Panasonic infrared sensors determined?

View Answer

What does “temperature difference of 4°C or more against background” mean?

View Answer

How is product life cycle calculated?

View Answer

What is the TO-5 metal package?

TO-5 is a standard for package size for semiconductors.

As seen in this image, a TO-5 package consists of a metal-semiconductor chip mounting 9mm in diameter, a dish-shaped component called “stem” that holds the external leads, and a metal cap that covers the semiconductor chip.

View Answer

Is it possible to use reflow soldering?

View Answer

How can we confirm detection performance based on the specification?

View Answer

Is there any correlation between sensitivity and distance?

View Answer

What is NEP (Noise Equivalent Power)?

View Answer

What is D* (ratio of detection performance)?

View Answer

Can Panasonic Passive infrared sensors detect even if human body temperature is lower than ambient temperature?

View Answer

Do Panasonic Passive infrared sensors detect animals or other objects aside from humans?

View Answer

Is light for motion detection constantly emitted from the lens?

View Answer

Although the detection range of standard lens type is 5m, is it possible for detection distance to be shorter?

View Answer

How long is the detectable infrared wavelength?

View Answer

What are "pyroelectric elements"?

View Answer

Is it possible to use PaPIRs in outdoor applications?

View Answer

How should the sensor be waterproofed?

View Answer

Can I change the detection area?

View Answer

Can the sensor be installed on a moving body?

View Answer

Is detection possible when the distance between the person and the sensor is almost zero?

View Answer

Can Panasonic Passive infrared sensors detect through a transparent plate such as glass or acrylic?

View Answer

Does the detection sensitivity change due to the ambient temperature?

View Answer

Does the performance change depending on the operating voltage?

View Answer

Is there any impact by sunlight?

View Answer

Does detection performance change depending on clothes?

View Answer

What is an effective method for pet immunity?

View Answer

Does airflow around the sensor have any influence on detection performance?

View Answer

How should the sensor be wired?

View Answer

Can the circuit stabilization time (wait time) be shortened?

View Answer

What is the duration of the digital output signal from the sensor after a detection?

View Answer

How much time elapses after the person stops moving within the detection area and before the signal becomes a “definite” OFF?

View Answer

Can the sensor handle external surges and electrical noise?

View Answer

Can the AC load be turned on and off directly?

View Answer

How do I set a timer for the output?

View Answer
Latest Videos

Playlist

Thumbnail for Chalk Talk on Panasonic Passive Infrared (PIR) Sensors

Chalk Talk on Panasonic Passive Infrared (PIR) Sensors

Thumbnail for Are There Any Sensors That Can Detect People? (S1 E2)

Are There Any Sensors That Can Detect People? (S1 E2)

Thumbnail for Panasonic PIR Sensors

Panasonic PIR Sensors

Thumbnail for Quick Clips: PIR Sensors Product Line Expansion

Quick Clips: PIR Sensors Product Line Expansion

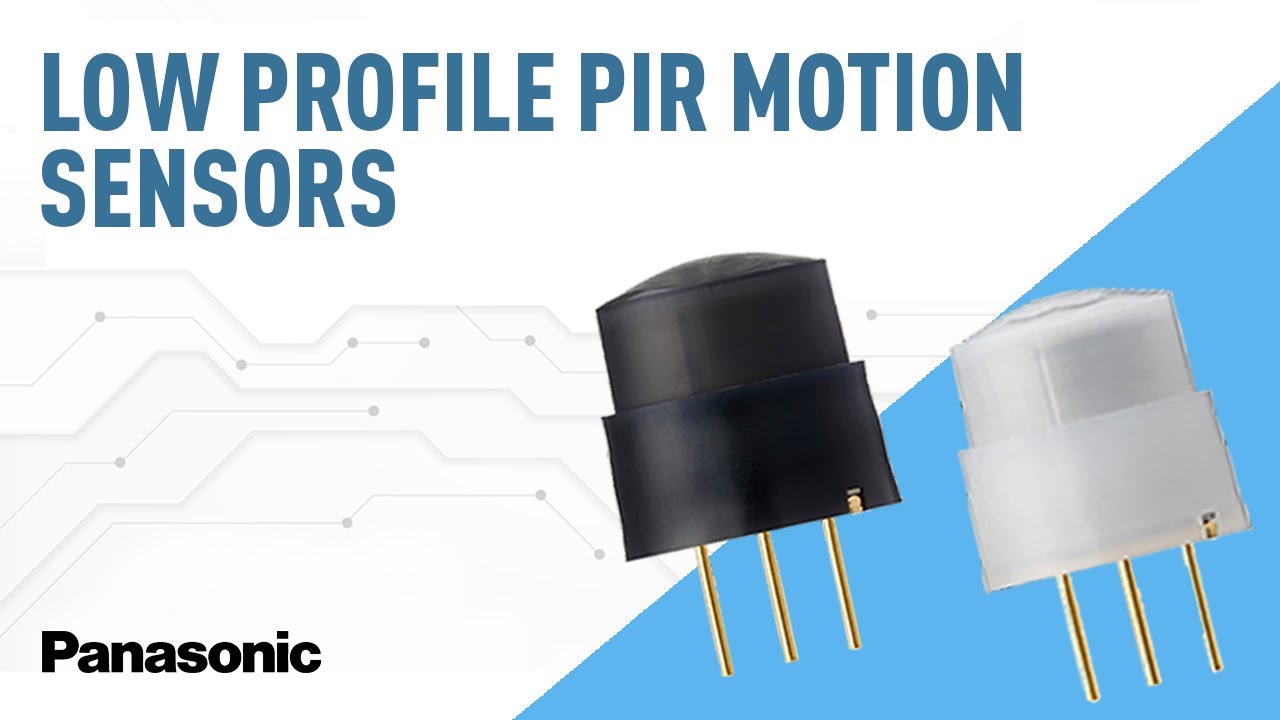

Thumbnail for Quick Clips: Low Profile PIR Sensors
