Specifications
| Item | Performance characteristics |
|---|---|
| External Dimensions (LxWxH) (mm) | 3.9 x 2.9 x 1.6 |
| Mounting Height (mm) (mm) | 1.6 |
| Dimensions Excluding Push Plate (mm) | 2.05 |
| Operating Force (N) | 1.6 |
| Protective Construction | IP67 |
| Type | Snap action / Push-on type SPST |
| External Dimensions (LxW) (mm) | 3.9 x 2.9 |
| External Dimensions (H) (mm) | 1.6 |
| Operating Direction | Side push |
| Applicable Soldering | Reflow |
| Mounting Type | SMD |
| Rating | 10μA 2V DC to 20mA 15V DC (Resistive load) |
| Contact Resistance (M&Omega: Max.) | 100 |
| Insulation Resistance (MΩ Min. at 100V DC) | 100 |
| Dielectric Withstanding Voltage | 250 V AC (for 1minute) |
| Bouncing | 10ms max. (ON, OFF) |
| Travel Type | Short Push Travel |
| Travel (mm) | 0.12 |
| Operating Life | 500,000 cycles |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +90°C (Bulk) -20°C to +60°C (Taping) |
| Terminal Type | Insert |
| Push Plate <br> (Actuator) | With |
| Ground Terminal | With |
| Boss | Without |
| Packaging | Embossed Taping (Reel Pack) |
| Minimum Quantity/Packing Unit | 5,000 pcs. |
| Quantity/Carton | 25,000 pcs. |
Stock check

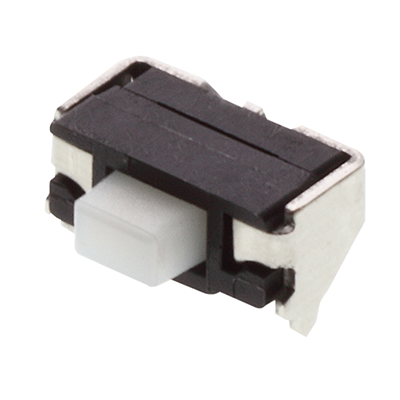

EVPAKE31A
