Specifications
| Item | Performance characteristics |
|---|---|
| Vehicle Compatible | Available |
| External Dimensions (LxWxH) (mm) | 4.5 x 2.6 x 2.9 |
| Mounting Height (mm) (mm) | 0.95 |
| Dimensions Excluding Push Plate (mm) | 2.20 |
| Operating Force (N) | 1.6 |
| Terminal Type | L-shape |
| Type | Snap action / Push-on type SPST |
| External Dimensions (LxW) (mm) | 4.5 x 2.6 |
| External Dimensions (H) (mm) | 2.90 |
| Operating Direction | Side push |
| Applicable Soldering | Reflow |
| Mounting Type | Edge Mount |
| Rating | 10μA 2V DC to 20mA 15V DC (Resistive load) |
| Contact Resistance (M&Omega: Max.) | 1,000 |
| Insulation Resistance (MΩ Min. at 100V DC) | 100 |
| Dielectric Withstanding Voltage | 250 V AC (for 1minute) |
| Bouncing | 10ms max. (ON, OFF) |
| Travel Type | Short Push Travel |
| Travel (mm) | 0.13 |
| Operating Life | 200,000 cycles |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C (Bulk) -20°C to +60°C (Taping) |
| Push Plate <br> (Actuator) | With |
| Push Plate Color | Black |
| Ground Terminal | With |
| Boss | Without |
| Packaging | Embossed Taping (Reel Pack) |
| Minimum Quantity/Packing Unit | 3,500 pcs. |
| Quantity/Carton | 17,500 pcs. |
Stock check
EVPAEGE2A
What's New
Stay up to date
Latest Videos
Playlist
How Can Panasonic Give My Product The "Right Feel" With Their Tactile Switches? (S1 E5)

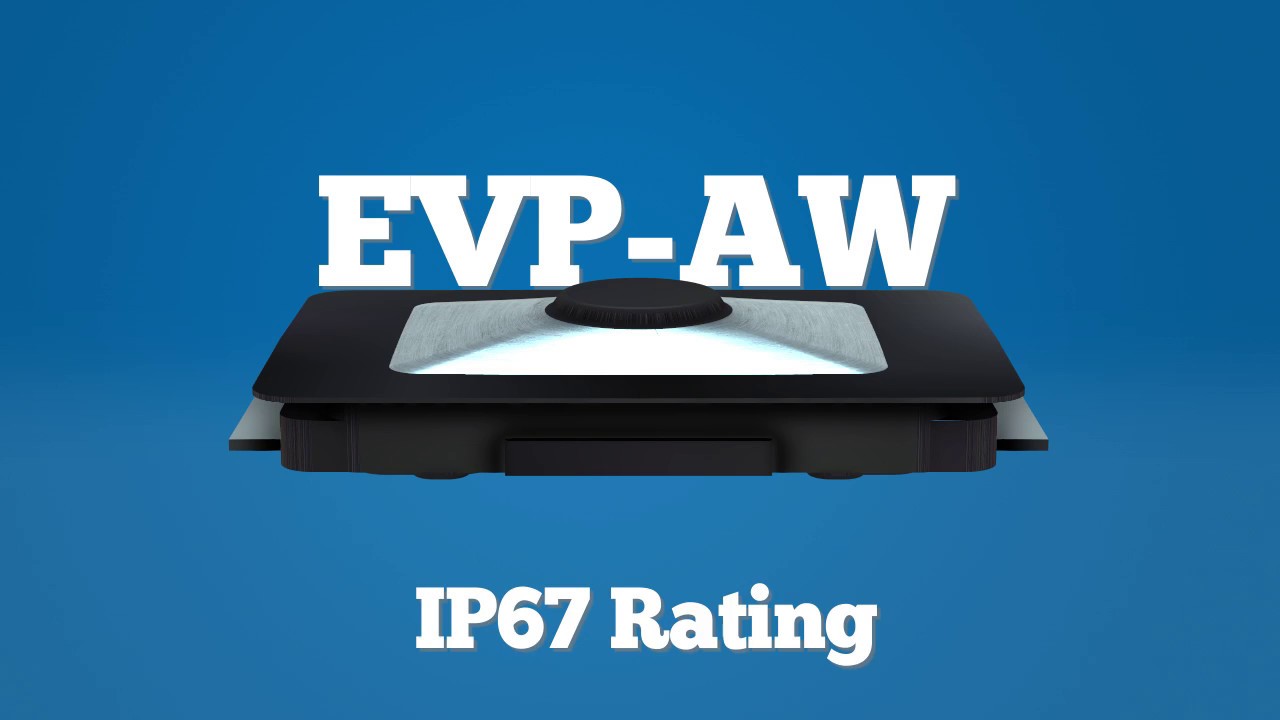

EVP-AW Light Touch Switches
