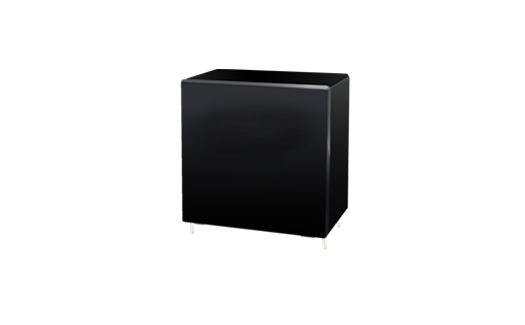

EZP-Q Series

The highly-moisture resistant EZP-Q Series Metallized Polypropylene Film Capacitors are rated for 85/85 and tested for 1000 hours. This rating combined with Panasonic’s Fuse Function technology makes the EZP-Q Series an excellent design in choice for extreme, long-term outdoor applications.

Features:

High Moisture Resistance (85°C, 85%RH, 1000h)
Voltage Range: 330 VAC, 380 VAC and 600 VAC
Operating Temperature Range: -40°C to 105°C
Rated Capacitance:
- 250VAC: 12 µF to 36 µF
- 330VAC: 3.0 µF to 20 µF
- 380VAC: 1.0 µF to 15 µF
- 600VAC: 1.0 µF to 12 µF
Capacitance Tolerance: ±5%, ±10%
Fuse Function
Flame Retardant
Case And Sealing Resin: UL94 V-0
RoHS and REACH Compliant

Benefits:

Design In For Extremely Long-Term Outdoor Use
Fuse Function Causes Open Circuits Upon Most Failures
Flame Resistant Coating
High Safety (Built-In Self-Protecting Function)
Long Life, High Reliability
Low Loss, Low ESR

Newest Product Highlights

600 VAC Part Numbers Now Available!

Panasonic's EZP-Q Series now offers 10 New 600 VAC Part Numbers featuring high moisture resistance of 85° C, 85% RH, a rated capacitance of 1.0 µF to 12 µF, and a capacitance tolerance of ±10%.

Models table for series EZP-Q Series
Part No.	Body Type	AC Or DC	Rated Voltage (V)	Temperature Range (°C)	Capacitance (microF)	Capacitance (µF)	Capacitance Tolerance (%)	Dielectric Material	Kind	Size code (mm (inch))	Size Code (mm(inch))	Body Length (mm)	Width (mm)	Height (mm)	Lead (Terminal) Pitch (mm)	Shape of Lead Wire	Packaging	Minimum Packaging Quantity	Weight (Typ.) (g)
EZPQ25126LTA	Cased & radial leaded type	AC	250	-25 to 85	12	12	-10 to 10	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	48.5	22	36	45.6	Short cut lead wire type	Other package	200	80
EZPQ33146MTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		14	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	42.5	35.5	50.5	37.5	Short cut lead wire type	Other package	100	90
EZPQ33126MTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		12	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	30	50.5	37.5	Short cut lead wire type	Other package	100	74
EZPQ33146LTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		14	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	42.5	35.5	50.5	37.5	Short cut lead wire type	Other package	100	89
EZPQ33286MTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		28	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD		57.5	35	64.5	52.5	Short cut lead wire type	Other package	50	165
EZPQ38106LTA	Cased & radial leaded type	AC	380	-40 to 105 (85)		10	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	30	50.5	37.5	Short cut lead wire type	Other package	100	73
EZPQ33455LTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		4.5	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	17	34.5	37.5	Short cut lead wire type	Other package	300	29
EZPQ38126MTA	Cased & radial leaded type	AC	380	-40 to 105 (85)		12	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41.5	30	56	37.5	Short cut lead wire type	Other package	100	84
EZPQ38225LTB	Cased & radial leaded type	AC	380	-40 to 105 (85)		2.2	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	15	29	37.5	Short cut lead wire type	Other package	300	22
EZPQ33405LTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		4	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	17	34.5	37.5	Short cut lead wire type	Other package	300	29

Models table for series EZP-Q Series
Part No.	Body Type	AC Or DC	Rated Voltage (V)	Temperature Range (°C)	Capacitance (microF)	Capacitance (µF)	Capacitance Tolerance (%)	Dielectric Material	Kind	Size code (mm (inch))	Size Code (mm(inch))	Body Length (mm)	Width (mm)	Height (mm)	Lead (Terminal) Pitch (mm)	Shape of Lead Wire	Packaging	Minimum Packaging Quantity	Weight (Typ.) (g)
EZPQ25126LTA	Cased & radial leaded type	AC	250	-25 to 85	12	12	-10 to 10	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	48.5	22	36	45.6	Short cut lead wire type	Other package	200	80
EZPQ33146MTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		14	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	42.5	35.5	50.5	37.5	Short cut lead wire type	Other package	100	90
EZPQ33126MTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		12	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	30	50.5	37.5	Short cut lead wire type	Other package	100	74
EZPQ33146LTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		14	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	42.5	35.5	50.5	37.5	Short cut lead wire type	Other package	100	89
EZPQ33286MTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		28	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD		57.5	35	64.5	52.5	Short cut lead wire type	Other package	50	165
EZPQ38106LTA	Cased & radial leaded type	AC	380	-40 to 105 (85)		10	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	30	50.5	37.5	Short cut lead wire type	Other package	100	73
EZPQ33455LTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		4.5	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	17	34.5	37.5	Short cut lead wire type	Other package	300	29
EZPQ38126MTA	Cased & radial leaded type	AC	380	-40 to 105 (85)		12	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41.5	30	56	37.5	Short cut lead wire type	Other package	100	84
EZPQ38225LTB	Cased & radial leaded type	AC	380	-40 to 105 (85)		2.2	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	15	29	37.5	Short cut lead wire type	Other package	300	22
EZPQ33405LTA	Cased & radial leaded type	AC	330	-40 to 105 (85)		4	-5 to 5	MPP	Metallized PP Film Capacitor	Not SMD	Not SMD	41	17	34.5	37.5	Short cut lead wire type	Other package	300	29
