Panasonic's A35UH (0.35mm Pitch) Series Connectors are 0.35mm Pitch Connectors for Board-To-FPC connections.  These Connectors maintain a Mated Height of 0.6mm and Width of 2.2mm.

The fine fitting structures have been modified to be used as power terminals. The power terminals are located on the far ends of the Connector and can carry up to a maximum of 5 Amps current each. This allows for a reduction in the number of power line pins and ultimately contributes to board space savings. Using the movable contact construction on the header side, contact reliability of both power pins is maintained at a level that is similar to that of the smaller individual signal pins. Using the A35UH (0.35mm Pitch) Series Connectors, users can connect multiple power signals between a USB and Battery in portable devices.

Panasonic's Tough Contact structure provides a slim and low-profile design resistant to various environmental conditions. Bending of the terminals creates a bellowed contact geometry with enhanced spring characteristics that provide a greater resistance to shock and vibration forces. A35H Series Connectors also feature a double contact "V-notch" construction, thus increasing the contact pressure and eliminating flux and other foreign matters more effectively than conventional products and preventing them from obstructing the contact.

All Panasonic Connectors employ an exposed Nickel-plated barrier to prevent solder from creeping up the terminal despite the ultra-low profile of the contact. Additionally, each contact also includes a porosity treatment membrane to resist corrosive gas environments and allow for lower insertion force during mating.

The A35UH (0.35mm Pitch) Series also features a simple lock structure which creates an audible and tactile click sensation during mating to ensure that they have been mated properly.

Series image for A35UH Series (0.35mm Pitch)

A35UH Series (0.35mm Pitch)

Part number list

Results 26
Models table for series A35UH Series (0.35mm Pitch)
Part No.DatasheetSocket/
Header
Number of PinsMated Height (mm)Family Name (Head of Product No.)TypeApplicationsTerminal Pitch (mm)Soldering TerminalsPositioning BossesBody Length (mm)Body Width (mm)Body Height (mm)Short Width Recommended PC Board Pattern Width (mm)Molded Portion Material Contact and Post MaterialSurface Treatment Material Rated CurrentInsulation Resistance (Min. MΩ)(Initial)Dielectric StrengthContact Resistance (M&Omega: Max.)Insertion and Removal Life (Times)Packing QuantityPacking Quantity; Inner Carton (Pcs.) Packing Quantity; Outer Carton (Pcs.)Piece Type
Header
16
0.6mm
AXF6
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
4.60
1.42
0.46
1.80
2.20
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Header)
Header
12
0.6mm
AXF6
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
3.90
1.42
0.46
1.80
2.20
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Header)
Header
10
0.6mm
AXF6
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
3.55
1.42
0.46
1.80
2.20
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Header)
Socket
70
0.6mm
AXF5
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
14.75
1.96
0.59
2.20
2.50
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Socket)
Socket
60
0.6mm
AXF5
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
13.00
1.96
0.59
2.20
2.50
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Socket)
Socket
40
0.6mm
AXF5
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
9.50
1.96
0.59
2.20
2.50
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Socket)
Socket
44
0.6mm
AXF5
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
10.20
1.96
0.59
2.20
2.50
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Socket)
Socket
10
0.6mm
AXF5
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
4.25
1.96
0.59
2.20
2.50
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Socket)
Socket
20
0.6mm
AXF5
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
6.00
1.96
0.59
2.20
2.50
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Socket)
Header
50
0.6mm
AXF6
BOARD-TO-FPC
Smartphones, Tablet PCs, Mobile devices
0.35
with
without
10.55
1.42
0.46
1.80
2.20
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
5.0A/pin contact (power terminal)
0.30A/pin contact (signal terminal): Max. 5A at total pin contacts
1000
150V AC for 1min.
Max. 30mΩ (power terminal)
Max. 90mΩ (signal terminal)
30
EMBOSSED TAPE AND PLASTIC REEL
15,000 pieces (1-reel)
30,000 pieces
2 Pieces type (Header)
Latest Videos

Playlist

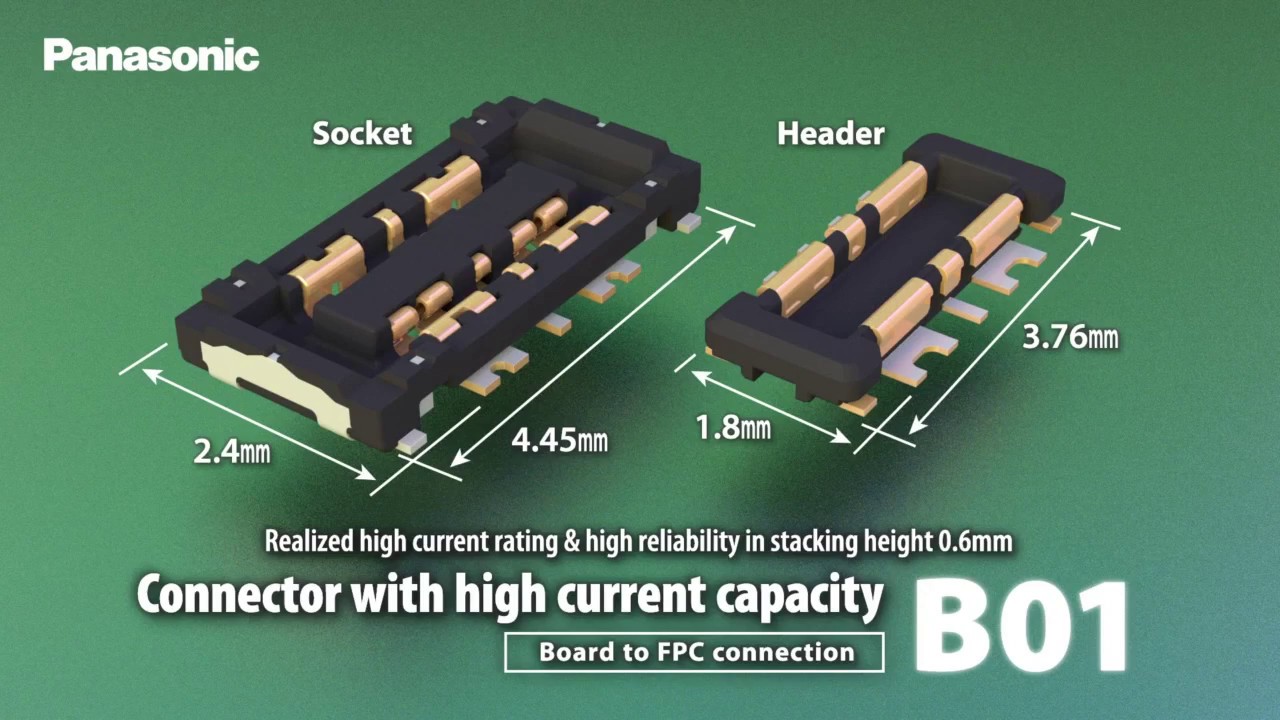

Thumbnail for Panasonic B01 Series Connectors
