Board-to-Board Connectors: High Current Connectors

High Current Connectors design engineers Panasonic
high current connectors

Panasonic’s offering includes various High Current Board-to-Board Connectors suitable for applications that require a connection to a power source/battery. These High Current Connectors have low mated height profiles, high reliability, and are manufactured with Panasonic's Touch Contact technology.

Line Up

Series/TypeData SheetImage0.35mm pitch0.4mm pitchFor board-to-FPC / For board-to-boardBOARD-TO-FPC Connect typeBoard to boardTOUGH CONTACTBoard to FPCShort widthMated heightNo. of pinsRated current

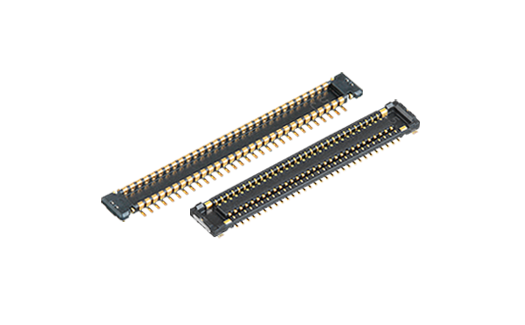

P4SP(0.4mm pitch)
EOL Scheduled
n/a11n/a1113.6mm1.5mm/2.5mm/3.0mm10 to 100[ Signal contact ]
As power contact: 1.0 A/pin contact x 10 pin contacts
As signal contact: 0.5 A/pin contact (Max. 12 A at total pin contacts)

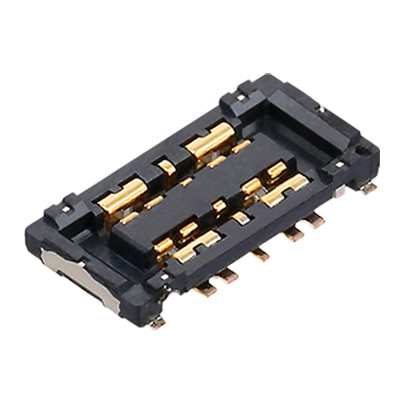

B01n/an/an/a1n/a112.4mm0.6mm/0.8mm6[ Power contact ] 3.0 A/pin contact
[ Signal contact ] 0.3 A/pin contact

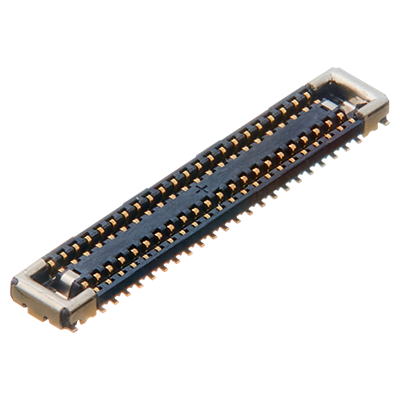

A35P(0.35mm pitch)n/an/an/a1n/a112.5mm0.8mm10 to 100[ Signal contact ]
As power contact: 1.5 A/pin contact x 4 pin contacts or 1.25 A/pin contact x 8 pin contacts
As signal contact: 0.5 A/pin contact (Max. 12 A at total pin contacts)

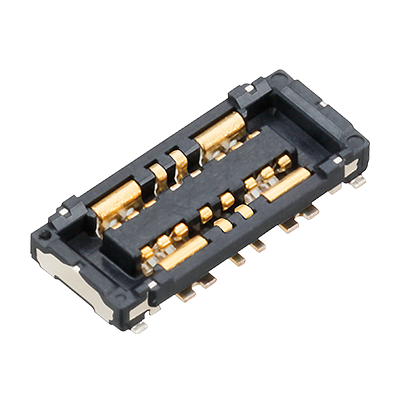

B02n/an/an/a1n/a112.2mm0.7mm8[ Power contact ] 5.0 A/pin contact
[ Signal contact ] 0.3 A/pin contact
A35UH(0.35mm pitch)1n/an/a1n/a112.2mm0.6mm10 to 70[ Power contact ] 5.0 A/pin contact
[ Signal contact ] 0.3 A/pin contact (Max. 5 A at total pin contacts)
S35H(0.35mm pitch)1n/an/a1n/a111.7mm0.6mm34 to 60[ Power contact ] 5.4 A/pin contact
[ Signal contact ] 0.3 A/pin contact (Max. 2 A at total pin contacts)
