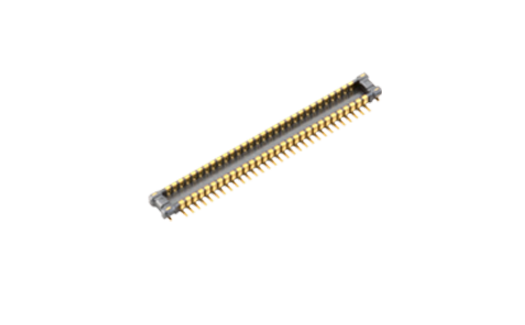

AXF6A6012 440 in stock

Specification

Specifications table for model AXF6A6012
ItemPerformance characteristics
Socket/HeaderHeader
Number of Pins60
Mated Height (mm)0.8mm
Family Name (Head of Product No.)AXF6
TypeBOARD-TO-FPC
ApplicationsDSC, Mobile devices
Terminal Pitch (mm)0.35
Soldering Terminalswith
Positioning Bosseswithout
Body Length (mm)12.15
Body Height (mm)0.65
Short Width 2.00
Recommended PC Board Pattern Width (mm)2.40
Molded Portion Material LCP resin (UL94V-0)
Contact and Post MaterialCopper alloy
Surface Treatment Material Base: Ni plating Surface: Au plating
Rated Current1.5 A/pin contact x 4 pin contacts or
1.25 A/pin contact x 8 pin contacts (as power contact)
0.5 A/pin contact (as signal contact)
(Max. 12 A at total pin contacts)
Insulation Resistance (Min. MΩ)(Initial)1000
Dielectric Strength150V AC for 1min.
Contact Resistance (M&Omega: Max.)30
Insertion and Removal Life (Times)30
Packing QuantityEMBOSSED TAPE AND PLASTIC REEL
Packing Quantity; Inner Carton (Pcs.) 5,000 pieces (1-reel)
Packing Quantity; Outer Carton (Pcs.)10,000 pieces
