Specifications
| Item | Performance characteristics |
|---|---|
| Socket/<br>Header | Socket |
| Number of Pins | 20 |
| Mated Height (mm) | 0.6mm |
| Type | BOARD-TO-FPC |
| Piece Type | 2 Pieces type (Socket) |
| Applications | Wearable devices, Smartphones, Hearable devices, Small mobile devices |
| Terminal Pitch (mm) | 0.35 |
| Packing Quantity | EMBOSSED TAPE AND PLASTIC REEL |
| Packing Quantity; Inner Carton (Pcs.) | 15,000 pieces (1-reel) |
| Packing Quantity; Outer Carton (Pcs.) | 30,000 pieces |
| Soldering Terminals | with |
| Positioning Bosses | without |
| Body Length (mm) | 5.95 |
| Body Height (mm) | 0.59 |
| Short Width | 1.70 |
| Recommended PC Board Pattern Width (mm) | 2.00 |
| Rated Current | [Power terminal] 5.0A/pin contact (2 terminal) [Signal terminal] 0.3A/pin contact (All pins can carry ; Max. 5A) |
| Dielectric Strength | 150V AC for 1min. |
| Insulation Resistance (Min. MΩ)(Initial) | 1000 |
| Contact Resistance (M&Omega: Max.) | [Power terminal] Max. 30mΩ [Signal terminal] Max. 90mΩ |
| Insertion and Removal Life (Times) | 30 |
| Molded Portion Material | LCP resin (UL94V-0) |
Stock check

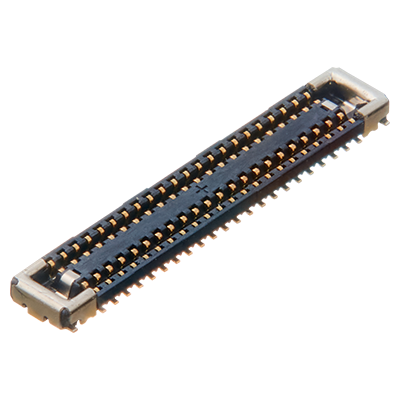

AXF5J2012
