Large Current Type - ETQP8M / AM*J

Small Power Choke Coil that Can Perform Highly under Strenuous Environments

The ETQ-P8M/AM***J** Series is small in size, high performance in automotive and harsh environment applications. Panasonic's Metal Composite Technology for Power Choke Coils results in a nearly linear inductance vs. current performance. These Power Choke Coils are AEC-Q200 Compliant for automotive applications as well as other strenuous environments that ensure optimal quality and reliability.

Features

Metal Composite Technology
Large Current Power: 53 A (R33 Type)
High Vibration Resistance: 30G
High Heat Resistance
Distributed Rather Than Discrete Gap
AEC-Q200 Compliant
High Operating Temperature (160°C Operation Including Self Heating)
RoHS Compliant

Benefits

Strong Reliability In End Equipment
Operation Up To 160°C including Any Self-Heating
Good Inductance Vs. Current Performance
For Height-Restricted Designs
Near Linear Inductance vs. Current Performance
Resistance to Shock, Vibration and Minimal Buzz Noise
Operation in Strenuous Environments
Excellent Inductance Stability Over A Broad Temperature Range
AEC-Q200 Compliance Ensures Strict Quality Control Standards Are Being Enforced

Series image for Large Current Type - ETQP8M / AM***J**

Large Current Power Choke Coil For Automotive (MC Type) - ETQ-P8MxxxJFA Series Features and Benefits

Small size with high performance for automotive and harsh environments.
Metal Composite Technology ensures near-linear inductance vs. current performance.
High current power capability: 53 A (R33 Type).
High vibration resistance: 30G.
High heat resistance with operation up to 160°C including self-heating.
Distributed gap for better performance.
AEC-Q200 compliant for stringent quality standards.
RoHS compliant.

Part number list

Results 10

Models table for series Large Current Type - ETQP8M / AM***J**
Part No.	Size [L×Ｗ] (mm)	Height (mm)	Inductance (μH)	DC Resistance [Typ.] (at 20℃) (mΩ)	DC Resistance [Max.] (at 20℃) (mΩ)	Rated Current [Typ.] (ΔT=40K, FR4, t=1.6 mm,　Four-layer PWB) (A)	Rated Current [Typ.] (ΔT=40K, High heat dissipation PWB) (A)	Rated Current [Typ.] (ΔL=–30%) (A)	Weight (Typ.) (g)	AEC-Q200 compliant
ETQP8M3R3JFA	12.6×13.1	8	3.3	3.6	3.96	19.6	23.6	27.6	7.3	AEC-Q200 compliant
ETQP8M2R5JFA	12.6×13.1	8	2.5	2.6	2.86	23	27.7	32.1	7.3	AEC-Q200 compliant
ETQP8M1R5JFA	12.6×13.2	8	1.5	1.8	1.98	27.7	33.3	29.9	7.3	AEC-Q200 compliant
ETQPAMR68JFW	17.2×15.6	10.5	0.68	0.7	0.77	53	65	71	13.8	AEC-Q200 compliant
ETQP8M1R0JFA	12.6×13.2	8	1	1.36	1.5	31.8	38.3	44.4	7.3	AEC-Q200 compliant
ETQP8MR68JFA	12.6×13.2	8	0.68	1.1	1.21	35.4	42.6	56.9	7.3	AEC-Q200 compliant
ETQP8M4R7JFA	12.6×13.1	8	4.7	4.9	5.39	16.8	20.2	24.7	7.3	AEC-Q200 compliant
ETQPAM1R0JFW	17.2×15.6	10.5	1.0	0.88	0.97	47	57	52	13.8	AEC-Q200 compliant
ETQP8MR33JFA	12.6×13.2	8	0.33	0.7	0.77	44.4	53.5	84.5	7.3	AEC-Q200 compliant

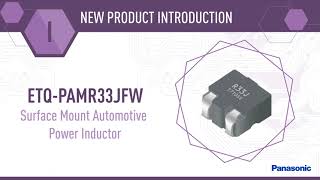

ETQPAMR33JFW	17.2×15.6	10.5	0.33	0.42	0.48	73	83	103	14.2	AEC-Q200 compliant

Models table for series Large Current Type - ETQP8M / AM***J**
Part No.	Size [L×Ｗ] (mm)	Height (mm)	Inductance (μH)	DC Resistance [Typ.] (at 20℃) (mΩ)	DC Resistance [Max.] (at 20℃) (mΩ)	Rated Current [Typ.] (ΔT=40K, FR4, t=1.6 mm,　Four-layer PWB) (A)	Rated Current [Typ.] (ΔT=40K, High heat dissipation PWB) (A)	Rated Current [Typ.] (ΔL=–30%) (A)	Weight (Typ.) (g)	AEC-Q200 compliant
ETQP8M3R3JFA	12.6×13.1	8	3.3	3.6	3.96	19.6	23.6	27.6	7.3	AEC-Q200 compliant
ETQP8M2R5JFA	12.6×13.1	8	2.5	2.6	2.86	23	27.7	32.1	7.3	AEC-Q200 compliant
ETQP8M1R5JFA	12.6×13.2	8	1.5	1.8	1.98	27.7	33.3	29.9	7.3	AEC-Q200 compliant
ETQPAMR68JFW	17.2×15.6	10.5	0.68	0.7	0.77	53	65	71	13.8	AEC-Q200 compliant
ETQP8M1R0JFA	12.6×13.2	8	1	1.36	1.5	31.8	38.3	44.4	7.3	AEC-Q200 compliant
ETQP8MR68JFA	12.6×13.2	8	0.68	1.1	1.21	35.4	42.6	56.9	7.3	AEC-Q200 compliant
ETQP8M4R7JFA	12.6×13.1	8	4.7	4.9	5.39	16.8	20.2	24.7	7.3	AEC-Q200 compliant
ETQPAM1R0JFW	17.2×15.6	10.5	1.0	0.88	0.97	47	57	52	13.8	AEC-Q200 compliant
ETQP8MR33JFA	12.6×13.2	8	0.33	0.7	0.77	44.4	53.5	84.5	7.3	AEC-Q200 compliant
ETQPAMR33JFW	17.2×15.6	10.5	0.33	0.42	0.48	73	83	103	14.2	AEC-Q200 compliant

New Product Information Download

Stay Up-To-Date On The Latest Product Details

Find the latest new product details here, with a convenient PDF product summary document. Quickly access and download the latest product information for the new ETQ-PAM1R0JFW Power Inductor For Automotive, including product specifications, features, benefits, industries and applications, software, block diagrams, and technical characteristics.

Download Now

New Product Information Download

Stay Up-To-Date On The Latest Product Details

Find the latest new product details here, with a convenient PDF product summary document. Quickly access and download the latest product information for the new ETQ-PAMR68JFW Power Inductor For Automotive, including product specifications, features, benefits, industries and applications, software, block diagrams, and technical characteristics.

Download Now

An AEC-Q200 Compliant Series

Panasonic components specified as AEC-Q200 Compliant are consistently designed into automotive systems. However, today’s Design Engineers are specifying AEC-Q200 components to meet the high-quality standards of devices beyond automotive applications.

Parts that pass the AEC tests are qualified, high-quality components that can be used in critical environments. Therefore, there should be no need to conduct other component level tests saving both time and expense.

Current AEC-Q200 Standard documents developed by the AEC Component Technical Committee are available on the AEC website. The AEC is an organization based in the U.S. that sets qualification standards for the supply of components in the automotive electronics industry.

If your next device requires components that meet the Automotive Electronics Council (AEC) requirements for components suitable for harsh automotive environments, think Panasonic!
