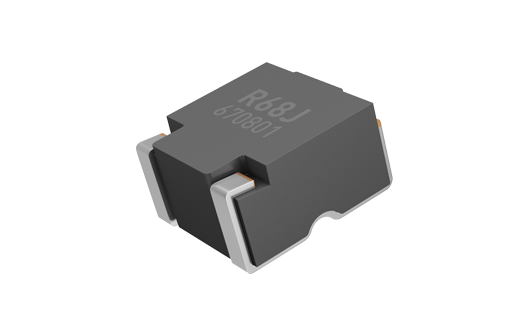

Surface Mount Power Choke Coils

Panasonic Power Choke Coils offer high heat resistance, excellent DC bias characteristic, Hi-BS With Ferrous alloy magnetic material and great reliability at high temperatures with a high tolerance for vibration.

These Power Choke Coils also have very low audible noise and are extremely efficient with low DCR and eddy current loss reduction.

Series table for lineup Surface Mount Power Choke Coils
Series/Type	Features	Size (LWH) (mm)	Inductance Range (μH)	AEC-Q200	RoHS (Compliance Certificate)	Reach (Report of Confirmation)
Power Choke Coil for Automotive (Metal core type) MC	High Saturation Current Type	5.5x5.0x3.0 to 10.9x10.0x6.0	0.33 to 100	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
High Vibration Acceleration-resistant Power Choke Coil for Automotive (Metal core type) MC	High Vibration Acceleration-resistant Type (50G or higher)	8.5x8.0x5.4 to 10.9x10.0x5.0	0.68 to 2.45	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Large current Power Choke Coil for Automotive (MC type)	Large Current Type 160℃ guaranteed	12.6x13.1x8.0, 12.6x13.2x8.0	0.33 to 4.7	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Power Choke Coil for Automotive-LP (MC type)	Low Profile Type 155℃ guaranteed	5.5x5.0x3.0 to 10.7x10.0x4.0	0.68 to 47	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Power Choke Coil for Automotive-LE (MC type)	Low Price Type	6.4x6.0x4.8, 7.4x7.0x4.8	3.3 to 47	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Power Choke Coil for Automotive-H (MC type)	High Frequency Low Loss Type	5.5x5.0x3.0, 6.5x6.0x3.0	2.2, 10	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Power Choke Coil for Automotive (Metal core type) Dust core	Low Core Loss Type	14.7x13.2x13.1	36	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)

Series table for lineup Surface Mount Power Choke Coils
Series/Type	Features	Size (LWH) (mm)	Inductance Range (μH)	AEC-Q200	RoHS (Compliance Certificate)	Reach (Report of Confirmation)
Power Choke Coil for Automotive (Metal core type) MC	High Saturation Current Type	5.5x5.0x3.0 to 10.9x10.0x6.0	0.33 to 100	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
High Vibration Acceleration-resistant Power Choke Coil for Automotive (Metal core type) MC	High Vibration Acceleration-resistant Type (50G or higher)	8.5x8.0x5.4 to 10.9x10.0x5.0	0.68 to 2.45	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Large current Power Choke Coil for Automotive (MC type)	Large Current Type 160℃ guaranteed	12.6x13.1x8.0, 12.6x13.2x8.0	0.33 to 4.7	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Power Choke Coil for Automotive-LP (MC type)	Low Profile Type 155℃ guaranteed	5.5x5.0x3.0 to 10.7x10.0x4.0	0.68 to 47	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Power Choke Coil for Automotive-LE (MC type)	Low Price Type	6.4x6.0x4.8, 7.4x7.0x4.8	3.3 to 47	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Power Choke Coil for Automotive-H (MC type)	High Frequency Low Loss Type	5.5x5.0x3.0, 6.5x6.0x3.0	2.2, 10	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Power Choke Coil for Automotive (Metal core type) Dust core	Low Core Loss Type	14.7x13.2x13.1	36	AEC-Q200 compliant	RoHS compliant (Please refer to the Related Information.)	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
