Specification

Specifications table for model AQY217GS
ItemPerformance characteristics
Continuous load current (IL)0.4 A
I/O isolation voltage (Viso)1,500 Vrms
Packing QuantityTube packing style
Product nameGU SOP 1 Form A High Capacity Low on-resistance
TypeGU
PackageSOP4

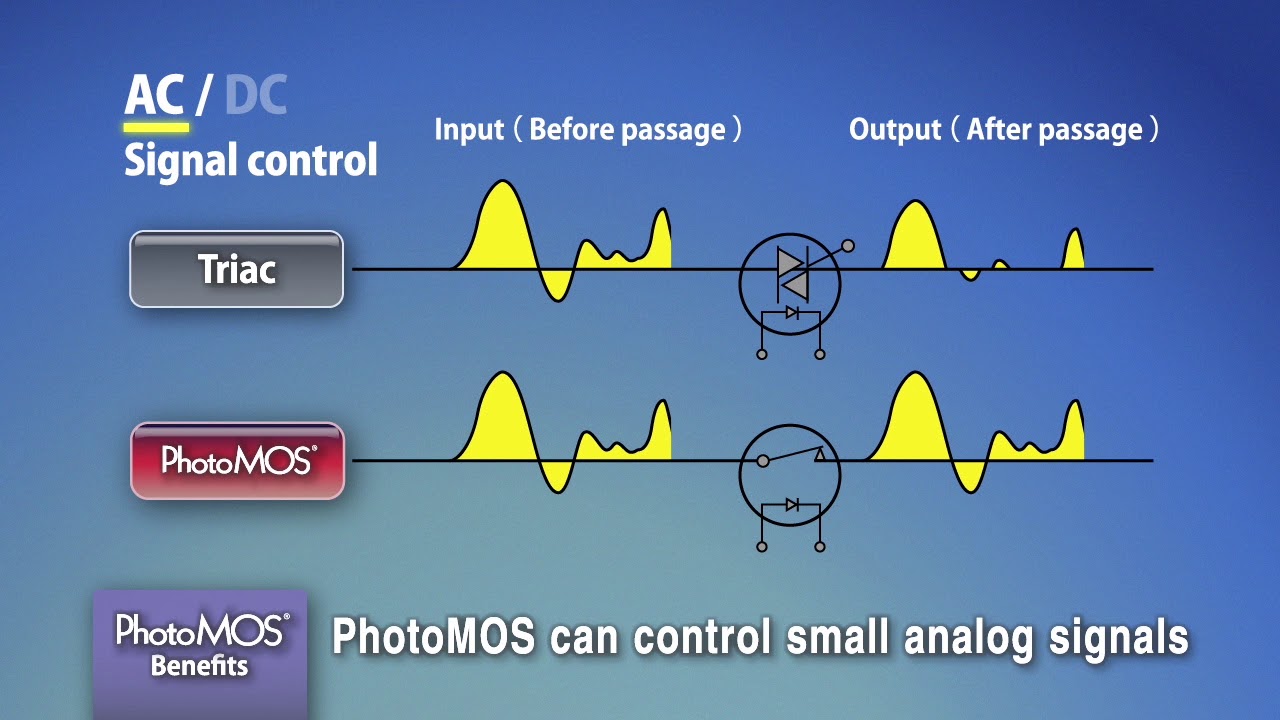

Voltage typeAC/DC
LED forward current (IF)50 mA
LED reverse voltage (VR)5 V
Peak forward current (IFP)1 A
Power dissipatio (Pin)75 mW
Load voltage [ VL ] (VL)200 V
Peak load current (Ipeak)1.2 A
Power dissipation (Pout)400 mW
Total power dissipation (Pt)450 mW
Ambient Temperature: Operating (Topr)-40 to +85°C
Ambient Temperature: Storage (Tstg)-40 to +100°C
LED operate current (Typical)0.75 mA
LED operate current (Maximum)3 mA
LED turn off current (Minimum)0.2 mA
LED turn off current (Typical)0.7 mA
LED dropout voltage (Typical) (VF)1.32 V
LED dropout voltage (Maximum) (VF)1.5 V
On resistance (Typical) (Ron)1.8 ohm
ON resistance (Maximum) (Ron)2.5 ohm
Off state leakage current (Maximum) (ILeak)1μA
Over Current ProtectionNothing
Turn on time (Typical)1.2 ms
Turn on time (Maximum)5.0 ms
Turn off time (Typical)0.03 ms
Turn off time (Maximum)0.2 ms
I/O capacitance (Typical) (Ciso)0.8 pF
I/O capacitance (Maximum) (Ciso)1.5 pF
Initial I/O isolation resistance (Minimum) (Riso)1,000 M ohm
Maximum switching frequency10 cps
LED Current (IF)Min.: 5 mA, Max.: 30 mA
Load Voltage (VL)Max.: 160 V
Continuous Load Current (IL)Max.: 0.4 A
Terminal typeSurface-mount terminal
Contact arrangement1 Form A
External dimensions
Recommended mounting pad (Top view)
