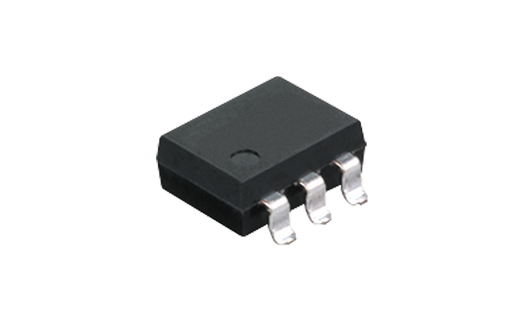

AQV209GAX

Specifications

Specifications table for model AQV209GAX
Item	Performance characteristics
Package	DIP6
Voltage Type	AC/DC
Load Voltage [ V<sub>L</sub> ] (V<sub>L</sub>)	1,200 V
Load current	0.75 A
I/O Isolation Voltage (V<sub>iso</sub>)	1,500 Vrms
Terminal Type	Surface-mount terminal
Packing Quantity	Tape and reel packing style (X)
Product Name	HF 1 Form A High Capacity
Type	HF
LED Forward Current (I<sub>F</sub>)	30 mA
LED Reverse Voltage (V<sub>R</sub>)	5 V
Peak Forward Current (I<sub>FP</sub>)	1 A
Power Dissipation (P<sub>in</sub>)	120 mW
Continuous Load Current (I<sub>L</sub>)	0.75 A
Peak Load Current (I<sub>peak</sub>)	2.25 A
Power Dissipation (P<sub>out</sub>)	600 mW
Total Power Dissipation (P<sub>t</sub>)	650 mW
Ambient Temperature: Operating (T<sub>opr</sub>)	-40 to +85℃
Ambient Temperature: Storage (T<sub>stg</sub>)	-40 to +100℃
LED Operate Current (Typical)	0.16 mA
LED Operate Current (Maximum)	3 mA
LED Turn Off Current (Minimum)	0.01 mA
LED Turn Off Current (Typical)	0.05 mA
LED Dropout Voltage (Typical) (V<sub>F</sub>)	2.95 V
LED Dropout Voltage (Maximum) (V<sub>F</sub>)	3.4 V
On Resistance (Typical) (R<sub>on</sub>)	1 Ω
On Resistance (Maximum) (R<sub>on</sub>)	2 Ω
Off State Leakage Current (Maximum) (I<sub>Leak</sub>)	1μA
Over Current Protection	Nothing
Turn On Time (Typical)	0.5 ms
Turn On Time (Maximum)	1 ms
Turn Off Time (Typical)	0.05 ms
Turn Off Time (Maximum)	0.5 ms
I/O Capacitance (Typical) (C<sub>iso</sub>)	1.3 pF
I/O Capacitance (Maximum) (C<sub>iso</sub>)	3 pF
Initial I/O Isolation Resistance (Minimum) (R<sub>iso</sub>)	1,000 M ohm
Maximum Switching Frequency	2.5 cps
LED Current (I<sub>F</sub>)	Min.: 10 mA, Max.: 30 mA
Load Voltage (V<sub>L</sub>)	Max.: 960 V
Continuous Load Current (I<sub>L</sub>)	Max.: 0.75 A
Contact Arrangement	1 Form A
External Dimensions
Recommended Mounting Pad (Top View)
Junction temperature (T<sub>j</sub>)	125℃
Packing quantity<br>Outer carton (pcs.)	1,000
Packing quantity<br>1-reel (pcs.)	1,000
