Panasonic's TB Series Power Type 1 Form A Automotive Relays for miniature PC Boards. These Relays are compact with a 30A @ 14VDC switching capacity using a 1 Form A contact arrangement and mounted using PCB terminals. The TB Series Power Type is also pin-in paste compliant for automatic reflow soldering processes and uses a Ag alloy with Cu clad contacts which are capable of handling 70A inrush from capacitive loads.

Features and Benefits:

  • Automotive Grade Relay Design
  • Small Compact Design For Space Savings
  • High Switching And Carry Current Capability For DC Loads
    • Can Meet All Resistive Switching At 14 VDC And Carry Loads Up To 30A Continuous Current
  • Capable Of Withstanding Automatic Reflow Soldering And Has A Wide Operating Ambient Temperature Rating Of -40°C to +110°C
    • Pin In Paste Compatible With High Heat Resistance
  • High Inrush Capability
    • Can Handle 70A Capacitive Loads
  • RoHS/REACH Compliant

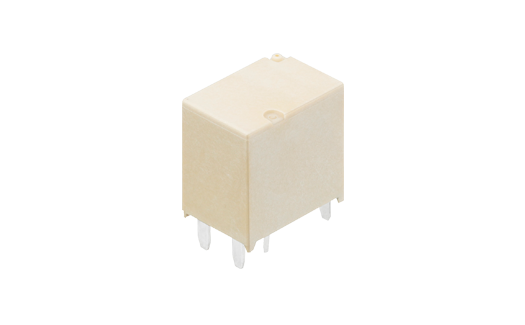

Series image for TB Series Power Type

TB Series Power Type

Part number list

Results 5
Models table for series TB Series Power Type
Part No.DatasheetProtective ConstructionHeat Resistance of TypesContact ArrangementContact TypeTerminal TypeOperating Function Rated Coil VoltageOperate (Set) Voltage (at20°C) (Initial) Release (Reset) voltage (at20°C) (Initial)Rated Operating Current [±10%] (at 20°C)Coil Resistance (At 20oC)Rated Operating Power (at 20°C) Usable Voltage RangeContact Resistance (Initial)Contact MaterialNominal Switching Capacity (Resistive Load) Contact Data: Max. Carrying CurrentMin. Switching Load (Resistive) Insulation Resistance (Min. MΩ)(Initial)Dielectric Strength (Between Open Contacts) (Initial)Dielectric Strength (Between Contacts and Coil) (Initial)Operate (Set) Time
(At Rated Coil Voltage) (At 20oC) (Initial)
Release (Reset) Time
(at Rated Coil Voltage) (at 20°C) (Initial)
Shock Resistance: Functional Shock Resistance: DestructiveVibration Resistance: FunctionalVibration Resistance: DestructiveExpected Life: Mechanical LifeExpected Life: ElectricalConditionsWeight (Typ.)Inner Carton (Pieces)Outer Carton (Pieces)
Sealed
High heat-resistant type
1 Form A
Standard type
PC board type
Single side stable
12V DC
Max. 7.0 V DC
Min. 0.5 V DC
40 mA
300 Ω
480 mW
10 to 16V DC
Max. 50mΩ (typ. 3mΩ) (By voltage drop 1A 6V DC)
Ag alloy
30A 14V DC
30 A for 1 hour (Coil applied voltage 12V DC at 20°C 68°F) (Initial)
1A 14V DC (at 20°C 68°F)
Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)
500 Vrms for 1 min. (Detection current: 10mA)
500 Vrms for 1 min. (Detection current: 10mA)
Max. 10ms (without contact bounce time)
Max. 10ms (without contact bounce time) (Without diode)
Min. 100 m/s2 [approx. 10G] (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)
Min. 1,000 m/s2 [approx. 100G] (Half-wave pulse of sine wave: 6 ms)
10 to 100 Hz, Min. 44.1m/s2 [approx. 4.5G] (Detection time: 10µs)
10 to 500 Hz, Min. 44.1m/s2 [approx. 4.5G]
Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours
Min. 5 x 106 (at 120cpm)
[Resistive load] Min. 105 at rated switching capacity
Operating frequency: 1s ON, 9s OFF
Ambient temperature: –40 to +110°C –40 to +230°F
Humidity: 2 to 85% R.H. (Please avoid icing or condensation)
approx. 5g .176 oz
50
2,000
Flux tight
Pin in Paste compliant type
1 Form A
Lamp control type
PC board type
Single side stable
12V DC
Max. 7.0 V DC
Min. 0.5 V DC
40 mA
300 Ω
480 mW
10 to 16V DC
Max. 50mΩ (typ. 3mΩ) (By voltage drop 1A 6V DC)
Ag alloy
30A 14V DC
30 A for 1 hour (Coil applied voltage 12V DC at 20°C 68°F) (Initial)
1A 14V DC (at 20°C 68°F)
Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)
500 Vrms for 1 min. (Detection current: 10mA)
500 Vrms for 1 min. (Detection current: 10mA)
Max. 10ms (without contact bounce time)
Max. 10ms (without contact bounce time) (Without diode)
Min. 100 m/s2 [approx. 10G] (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)
Min. 1,000 m/s2 [approx. 100G] (Half-wave pulse of sine wave: 6 ms)
10 to 100 Hz, Min. 44.1m/s2 [approx. 4.5G] (Detection time: 10µs)
10 to 500 Hz, Min. 44.1m/s2 [approx. 4.5G]
Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours
Min. 5 x 106 (at 120cpm)
[Resistive and capacitor loads] Min. 105: at 70 A (Inrush), 15 A (Steady), 14 V DC
Operating frequency: 0.15s ON, 4.85s OFF
Ambient temperature: –40 to +110°C –40 to +230°F
Humidity: 2 to 85% R.H. (Please avoid icing or condensation)
approx. 5g .176 oz
50
2,000
Sealed
High heat-resistant type
1 Form A
Lamp control type
PC board type
Single side stable
12V DC
Max. 7.0 V DC
Min. 0.5 V DC
40 mA
300 Ω
480 mW
10 to 16V DC
Max. 50mΩ (typ. 3mΩ) (By voltage drop 1A 6V DC)
Ag alloy
30A 14V DC
30 A for 1 hour (Coil applied voltage 12V DC at 20°C 68°F) (Initial)
1A 14V DC (at 20°C 68°F)
Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)
500 Vrms for 1 min. (Detection current: 10mA)
500 Vrms for 1 min. (Detection current: 10mA)
Max. 10ms (without contact bounce time)
Max. 10ms (without contact bounce time) (Without diode)
Min. 100 m/s2 [approx. 10G] (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)
Min. 1,000 m/s2 [approx. 100G] (Half-wave pulse of sine wave: 6 ms)
10 to 100 Hz, Min. 44.1m/s2 [approx. 4.5G] (Detection time: 10µs)
10 to 500 Hz, Min. 44.1m/s2 [approx. 4.5G]
Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours
Min. 5 x 106 (at 120cpm)
[Resistive and capacitor loads] Min. 105: at 70 A (Inrush), 15 A (Steady), 14 V DC
Operating frequency: 0.15s ON, 4.85s OFF
Ambient temperature: –40 to +110°C –40 to +230°F
Humidity: 2 to 85% R.H. (Please avoid icing or condensation)
approx. 5g .176 oz
50
2,000
Flux tight
Pin in Paste compliant type
1 Form A
Lamp control type
PC board type
Single side stable
12V DC
Max. 7.0 V DC
Min. 0.5 V DC
40 mA
300 Ω
480 mW
10 to 16V DC
Max. 50mΩ (typ. 3mΩ) (By voltage drop 1A 6V DC)
Ag alloy
30A 14V DC
30 A for 1 hour (Coil applied voltage 12V DC at 20°C 68°F) (Initial)
1A 14V DC (at 20°C 68°F)
Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)
500 Vrms for 1 min. (Detection current: 10mA)
500 Vrms for 1 min. (Detection current: 10mA)
Max. 10ms (without contact bounce time)
Max. 10ms (without contact bounce time) (Without diode)
Min. 100 m/s2 [approx. 10G] (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)
Min. 1,000 m/s2 [approx. 100G] (Half-wave pulse of sine wave: 6 ms)
10 to 100 Hz, Min. 44.1m/s2 [approx. 4.5G] (Detection time: 10µs)
10 to 500 Hz, Min. 44.1m/s2 [approx. 4.5G]
Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours
Min. 5 x 106 (at 120cpm)
[Resistive and capacitor loads] Min. 105: at 70 A (Inrush), 15 A (Steady), 14 V DC
Operating frequency: 0.15s ON, 4.85s OFF
Ambient temperature: –40 to +110°C –40 to +230°F
Humidity: 2 to 85% R.H. (Please avoid icing or condensation)
approx. 5g .176 oz
50
2,000
Flux tight
Pin in Paste compliant type
1 Form A
Standard type
PC board type
Single side stable
12V DC
Max. 7.0 V DC
Min. 0.5 V DC
40 mA
300 Ω
480 mW
10 to 16V DC
Max. 50mΩ (typ. 3mΩ) (By voltage drop 1A 6V DC)
Ag alloy
30A 14V DC
30 A for 1 hour (Coil applied voltage 12V DC at 20°C 68°F) (Initial)
1A 14V DC (at 20°C 68°F)
Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)
500 Vrms for 1 min. (Detection current: 10mA)
500 Vrms for 1 min. (Detection current: 10mA)
Max. 10ms (without contact bounce time)
Max. 10ms (without contact bounce time) (Without diode)
Min. 100 m/s2 [approx. 10G] (Half-wave pulse of sine wave: 11 ms; detection time: 10µs)
Min. 1,000 m/s2 [approx. 100G] (Half-wave pulse of sine wave: 6 ms)
10 to 100 Hz, Min. 44.1m/s2 [approx. 4.5G] (Detection time: 10µs)
10 to 500 Hz, Min. 44.1m/s2 [approx. 4.5G]
Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours
Min. 5 x 106 (at 120cpm)
[Resistive load] Min. 105 at rated switching capacity
Operating frequency: 1s ON, 9s OFF
Ambient temperature: –40 to +110°C –40 to +230°F
Humidity: 2 to 85% R.H. (Please avoid icing or condensation)
approx. 5g .176 oz
50
2,000

Automotive Relays Available Through Panasonic Franchised Distributors

TB Series Power Type Automotive Relay
ACTBPDR4V Automotive Relay

The ACTBPDR4V is the only part number available for purchase in the Panasonic Power Type TB Series Automotive Relays through franchised distributors.

The TB Series Power Type ACTBPDR4V part is a compact Automotive Relay with a 30A @ 14VDC switching capacity using a 1 Form A contact arrangement and mounted using PCB terminals. This Relay is designed for usage in a 12VDC power supply system. The ACTBPDR4V Relay is also pin-in paste compliant for automatic reflow soldering processes and uses a Ag alloy with Cu clad contacts which are capable of handling 70A inrush from capacitive loads.

The TB Series Power Type ACTBPDR4V part is manufactured in Vietnam.
