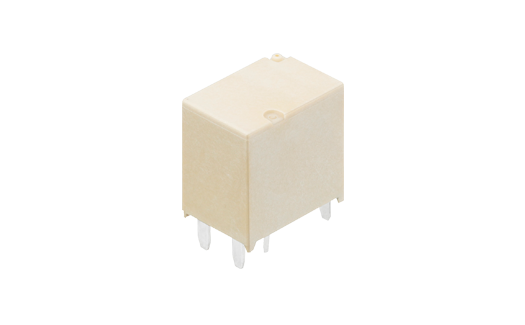

Specifications
| Item | Performance characteristics |
|---|---|
| Protective Construction | Flux tight |
| Heat Resistance of Types | Pin in Paste compliant type |
| Contact Arrangement | 1 Form A |
| Contact Type | Lamp control type |
| Terminal Type | PC board type |
| Operating Function | Single side stable |
| Rated Coil Voltage | 12V DC |
| Operate (Set) Voltage (at20°C) (Initial) | Max. 7.0 V DC |
| Release (Reset) voltage (at20°C) (Initial) | Min. 0.5 V DC |
| Rated Operating Current [±10%] (at 20°C) | 40 mA |
| Coil Resistance (At 20oC) | 300 Ω |
| Rated Operating Power (at 20°C) | 480 mW |
| Usable Voltage Range | 10 to 16V DC |
| Contact Resistance (Initial) | Max. 50mΩ (typ. 3mΩ) (By voltage drop 1A 6V DC) |
| Contact Material | Ag alloy |
| Nominal Switching Capacity (Resistive Load) | 30A 14V DC |
| Contact Data: Max. Carrying Current | 30 A for 1 hour (Coil applied voltage 12V DC at 20°C 68°F) (Initial) |
| Min. Switching Load (Resistive) | 1A 14V DC (at 20°C 68°F) |
| Insulation Resistance (Min. MΩ)(Initial) | Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.) |
| Dielectric Strength (Between Open Contacts) (Initial) | 500 Vrms for 1 min. (Detection current: 10mA) |
| Dielectric Strength (Between Contacts and Coil) (Initial) | 500 Vrms for 1 min. (Detection current: 10mA) |
| Operate (Set) Time<br>(At Rated Coil Voltage) (At 20oC) (Initial) | Max. 10ms (without contact bounce time) |
| Release (Reset) Time<br>(at Rated Coil Voltage) (at 20°C) (Initial) | Max. 10ms (without contact bounce time) (Without diode) |
| Shock Resistance: Functional | Min. 100 m/s2 [approx. 10G] (Half-wave pulse of sine wave: 11 ms; detection time: 10µs) |
| Shock Resistance: Destructive | Min. 1,000 m/s2 [approx. 100G] (Half-wave pulse of sine wave: 6 ms) |
| Vibration Resistance: Functional | 10 to 100 Hz, Min. 44.1m/s2 [approx. 4.5G] (Detection time: 10µs) |
| Vibration Resistance: Destructive | 10 to 500 Hz, Min. 44.1m/s2 [approx. 4.5G] Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours |
| Expected Life: Mechanical Life | Min. 5 x 106 (at 120cpm) |
| Expected Life: Electrical | [Resistive and capacitor loads] Min. 105: at 70 A (Inrush), 15 A (Steady), 14 V DC Operating frequency: 0.15s ON, 4.85s OFF |
| Conditions | Ambient temperature: –40 to +110°C –40 to +230°F Humidity: 2 to 85% R.H. (Please avoid icing or condensation) |
| Weight (Typ.) | approx. 5g .176 oz |
| Inner Carton (Pieces) | 50 |
| Outer Carton (Pieces) | 2,000 |
