Specifications

Specifications table for model AEVH900122
ItemPerformance characteristics
Terminal TypeScrew terminal
Coil Terminal StructureFaston terminal
Installation TypeHorizontal type
Rated Coil Voltage12V DC
Contact Capacity100 A
Protective ConstructionCapsule contact
Operating Function Single side stable
Operate (Set) Voltage (at20°C) (Initial) Max. 9 V DC
Release (Reset) voltage (at20°C) (Initial)Min. 0.5 V DC
Rated Operating Current [±10%] (at 20°C)0.453 A
Coil Resistance (At 20oC)26.5Ω
Rated Operating Power (at 20°C) 5.4 W
Max. applied voltage16 V DC
Contact Arrangement1 Form A
Contact MaterialCu alloy
Nominal Switching Capacity (Resistive Load) 100A 450V DC (Carry, 30mm2 wire)
Max. Carring Current 100 A continuous (30mm2 wire)
Min. Switching Load (Resistive) 1A 12V DC (at 20°C)
Contact Voltage Drop (Initial)Max. 0.1 V (by voltage drop 12 V DC 100 A)
Insulation Resistance (Min. MΩ)(Initial)Min. 100 MΩ (At 500 V DC, Measured portion is the same as the case of dielectric strength.)
Dielectric Strength (Between Open Contacts) (Initial)2,500 Vrms for 1min. (detection current: 10 mA.)
Dielectric Strength (Between Contacts and Coil) (Initial)2,500 Vrms for 1min. (detection current: 10 mA.)
Operate (Set) Time<br>(At Rated Coil Voltage) (At 20oC) (Initial)Max. 50 ms (without bounce)
Release (Reset) Time<br>(at Rated Coil Voltage) (at 20&deg;C) (Initial)Max. 30 ms (with no coil protective elements)
Shock Resistance: Functional For ON: Min. 196 m/s2 (Half-sine shock pulse: 11 ms; detection time: 10 µs)
For OFF: Min. 98 m/s2 (Half-sine shock pulse: 11 ms; detection time: 10 µs)
Shock Resistance: DestructiveMin. 490 m/s2 (Half-sine shock pulse: 6 ms)
Vibration Resistance: Functional10 to 200 Hz, 44.1 m/s2 (detection time: 10 µs)
Vibration Resistance: Destructive10 to 200 Hz, 44.1 m/s2 X, Y, Z direction: 4 hours
Expected Life: Mechanical LifeMin. 2 x 105
Expected Life: Switch-Off Life1,000 A 400 V DC, Min. 1 operation (No polarity)
Expected Life: Inrush Current (Capacitor)100 A 20 V DC, Min. 70,000 operations
ConditionsAmbient temperature: –40 to +80°C
Humidity: 5 to 85% R.H. (Avoid icing when using at temperatures lower than 0°C.)
Weight (Typ.)Approx. 275 g
Short Circuit Capacity 6,000 A (at Max. 3 ms), No smoke and no ignition
Standard Packing 20 pieces. (Carton 20 pieces / 1 tray)
Usable Voltage Range10 V DC to 16 V DC

Stock check

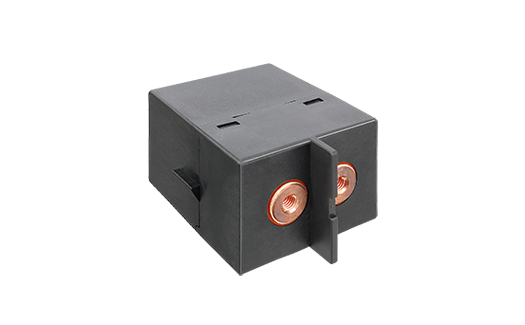

Model image for AEVH900122

AEVH900122
