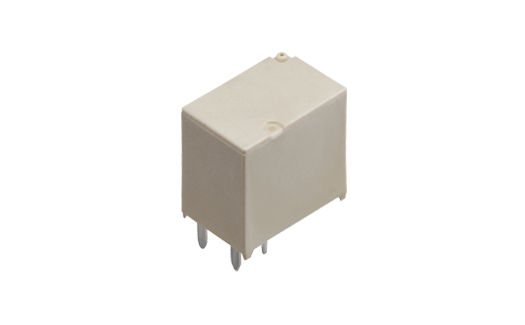

Specifications table for model ACTB2CR2A60
ItemPerformance characteristics
Protective ConstructionFlux tight
Rated Coil Voltage12V DC
Coil Resistance (at 20oC)160Ω
Heat Resistance of TypesPin in Paste compliant type
Contact Arrangement1 Form C
Contact TypeStandard type (Ag alloy / Cu clad)
Terminal TypePC board type
Operating Function Single side stable
Operate (Set) Voltage (at20°C) (Initial) Max. 6.5V DC
Release (Reset) voltage (at20°C) (Initial)Min. 0.8V DC
Rated Operating Current [±10%] (at 20°C)75 mA
Coil Resistance (At 20oC)160Ω
Rated Operating Power 900 mW
Usable Voltage Range10 to 16V DC
Contact Resistance (Initial)Max. 50mΩ (N.O. side: typ. 3mΩ, N.C. side: typ. 4mΩ) (By voltage drop 1A 6V DC)
Nominal Switching Capacity (Resistive Load) N.O. side: 20A 14V DC, N.C. side: 10A 14V DC
Contact MaterialAg alloy
Contact Data: Max. Carrying Current25A for 10 minutes (Coil applied voltage 12V DC, at 20°C 68°F) (initial)
Min. Switching Load (Resistive) 1A 14V DC (at 20°C 68°F)
Insulation Resistance (Min. MΩ)(Initial)Min. 100 MΩ (at 500V DC, Measurement at same location as [Dielectric strength] section.)
Dielectric Strength (Between Open Contacts) (Initial)500 Vrms for 1 min. (Detection current: 10mA)
Dielectric Strength (Between Contacts and Coil) (Initial)500 Vrms for 1 min. (Detection current: 10mA)
Operate (Set) Time<br>(At Rated Coil Voltage) (At 20oC) (Initial)Max. 10ms (Without contact bounce time)
Release (Reset) Time<br>(at Rated Coil Voltage) (at 20&deg;C) (Initial)Max. 10ms (Without contact bounce time) (Without diode)
Shock Resistance: Functional Min. 100 m/s2 [approx. 10G] (Half-wave pulse of sine wave: 11ms; detection time: 10µs)
Shock Resistance: DestructiveMin. 1,000 m/s2 [approx. 100G] (Half-wave pulse of sine wave: 6ms)
Vibration Resistance: Functional10 to 100 Hz, Min. 44.1 m/s2 [approx. 4.5G] (Detection time: 10µs)
Vibration Resistance: Destructive10 to 500 Hz, Min. 44.1 m/s2 [approx. 4.5G],
Time of vibration for each direction; X, Y direction: 2 hours, Z direction: 4 hours
Expected Life: Mechanical LifeMin. 107 (at 120 cpm)
Expected Life: Electrical[Resistive load]
Min. 105 at rated switching capacity,
Operating frequency: 1s ON, 9s OFF
[Motor load]
Min. 105 25 A 14V DC at motor lock condition,
Operating frequency: 0.5s ON, 9.5s OFF
ConditionsAmbient temperature: –40 to +110°C –40 to +230°F, Humidity: 2 to 85% R.H.
(Please avoid icing or condensation)
Weight (Typ.)Approx. 5 g .176 oz
Packing QuantityTube
Inner Carton (Pieces)50
Outer Carton (Pieces) 2,000
