Specifications
| Item | Performance characteristics |
|---|---|
| Terminal Type | Standard PC board terminal |
| Operating Function | Single side stable type |
| Rated Operating Power | 140mW |
| Coil Voltage | 1.5V DC |
| Packing Quantity | Tube packing |
| Protective Construction | Sealed Type |
| Contact Type | Power type |
| Contact Arrangement | 2 Form C |
| Contact Material | Ag+Au plating |
| Pick-Up Voltage | 75%V or less of nominal voltage (Initial) |
| Input side: Drop-out Voltage | 10%V or more of nominal voltage (Initial) |
| Nominal Switching Capacity (Resistive Load) | 2A 30V DC, 0.5A 125V AC |
| Max. Switching Current | Inrush 7.5 A, Stedy 2 A |
| Min. Switching Capacity | 10μA 10mV DC |
| Breakdown Voltage (Initial) : Between Open Contacts | 1,000 Vrms for 1min. (Detection current: 10mA.) |
| Breakdown Voltage (Initial) : Between Contact And Coil | 2,000 Vrms for 1min. (Detection current: 10mA.) |
| Breakdown Voltage (Contact-Contact) (Initial) | 1,000 Vrms for 1min. (Detection current: 10mA.) |
| Surge Breakdown Voltage (Initial): Between Open Contacts | 1,500 V 10 x 160 μs |
| Surge Breakdown Voltage (Initial): Between Contacts and Coil | 2,500 V 2 x 10 μs |
| Expected Life: Mechanical | Min. 100 x 106ope. (Switching frequency: at 180 times/min) |
| Expected Life: Electrical | [Resistive load Switching frequency at 20 times/minute] Min. 500×103ope. 1 A 30 V DC Min. 100×103ope. 2 A 30 V DC Min. 100×103ope. 0.5 A 125 V AC [Inrush load, Switching frequency ON : OFF = 1s : 9s] Min. 200×103ope. Inrush current: 7.5 A 30 V AC (250 ms time) Steady state current: 1.5 A 30 V AC (cosΦ= 0.4) |
| Conditions | Ambient temperature: –40 to +85℃ (Allowable temperature is from －40 to ＋70 ℃ at our standard packing condition.) Humidity: 5 to 85% RH (Avoid icing and condensation) |
| Height (mm) | 8.2 |
| Weight (Typ.) | Approx. 2 g .071 oz |
| Packing Quantity; Inner Carton (Pcs.) | 40 |
| Packing Quantity; Outer Carton (Pcs.) | 1000 |
| Max.switching current (*) | Inrush: 7.5 A, Steady: 2 A When used at 7.5 A. Regarding connection method, you must follow the precaution, Connection of No (pin #5 and #8) and COM (pin #4 and #9) in the cricuit is required. |
Stock check

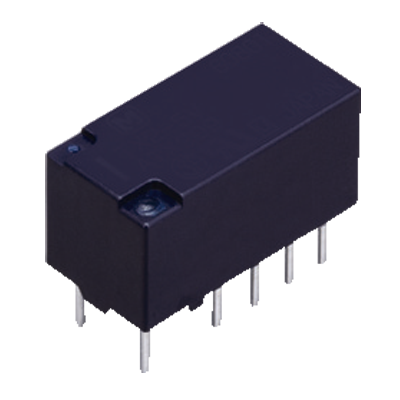

TX2-1.5V-TH
