Panasonic’s Bluetooth® Low Energy Beacon

Panasonic's PAN1740 Bluetooth Low Energy Beacon is based on one of the world’s most energy-efficient RF Modules, the Panasonic PAN1740 Series. The ultra-low power consumption of less than 5mA in Tx mode enables the PAN1740 Beacon to run on a single Coin Cell Battery for years. This compact Beacon is just 26 x 24mm and includes an antenna, ARM CORTEX M0, 256kB flash, and CR2032 Coin Cell Battery holder.

The PAN1740 Beacon is pre-configured (using flash memory) for out-of-the-box evaluation and use. Simply apply power by inserting a CR2032 Battery and see the Beacon using the Locate Beacon App from the Google Play Store. The integrated flash memory is available for custom applications.



Block Diagram

Features

  • Based on BT Smart System-on-Chip PAN1740
  • ARM CORTEX M0 with 256Kb Memory
  • 26 x 24mm With Antenna
  • FCC/IC/CE Certified
  • Battery Holder For CR2032 Coin Cell
  • Reference Design For Standard Housing Available
  • Approximate Battery Life 18 Months, at 700ms Advertising Interval
  • SDK / Application Notes Available



PAN1740 Beacon

Part number list

Results 1
Models table for series PAN1740 Beacon
Part No.DatasheetSize (mm) (mm)Rx Sensitivity (dBm)Tx Power (Max.)Max. Operating Temp.Frequency Range
26 x 24mm with Antenna
-93 @ BER 1%
0 dBm
+85° C
2.4 GHz

PAN1781 Series Bluetooth® 5.3 Low Energy Module

PAN1781 Series Bluetooth® 5 Low Energy Module
For IoT Applications Where Long Range Is Required

Panasonic’s newest high technology Bluetooth 5.3 Low Energy Module device featuring the Nordic nRF52820 Single-Chip Controller! With a Cortex® M4 processor, 32kB RAM, and the built-in 256 kB flash memory, the PAN1781 Series RF Module can easily be used in standalone mode to eliminate the need for an external processor, saving complexity, space, and cost. An output power of up to 8 dBm and the high sensitivity of the nRF52820 in combination with the LE coded PHY make the NEW PAN1781 Series RF Module very attractive in applications where a long range is required. The PAN1781 Series RF Module also supports Bluetooth Mesh, Thread, and Zigbee Mesh Protocols.

Latest Videos

Playlist

Thumbnail for Bluetooth Low Energy Modules Overview

Bluetooth Low Energy Modules Overview

Thumbnail for Ask the Engineers - PAN1720 Bluetooth Module

Ask the Engineers - PAN1720 Bluetooth Module

Thumbnail for PAN1740 Bluetooth Module Quick Start

PAN1740 Bluetooth Module Quick Start

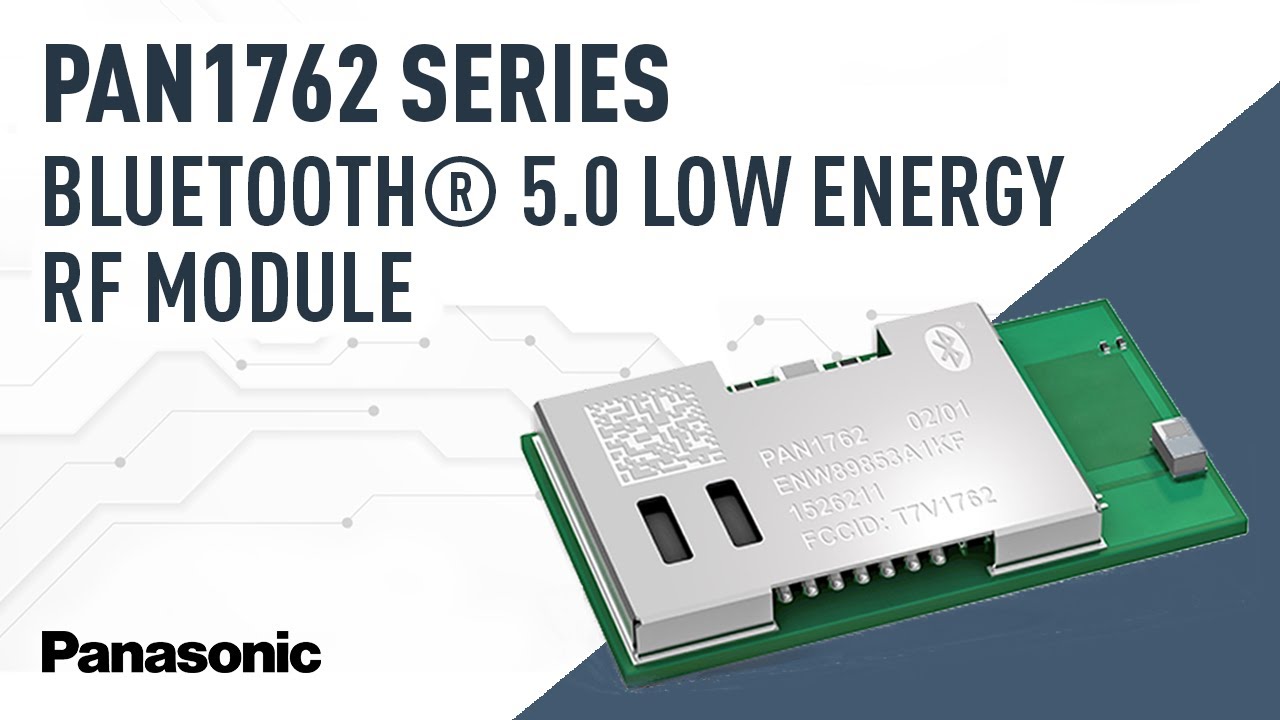

Thumbnail for Quick Clips: PAN1762 Series Bluetooth® 5.0 Low Energy RF Module

Quick Clips: PAN1762 Series Bluetooth® 5.0 Low Energy RF Module

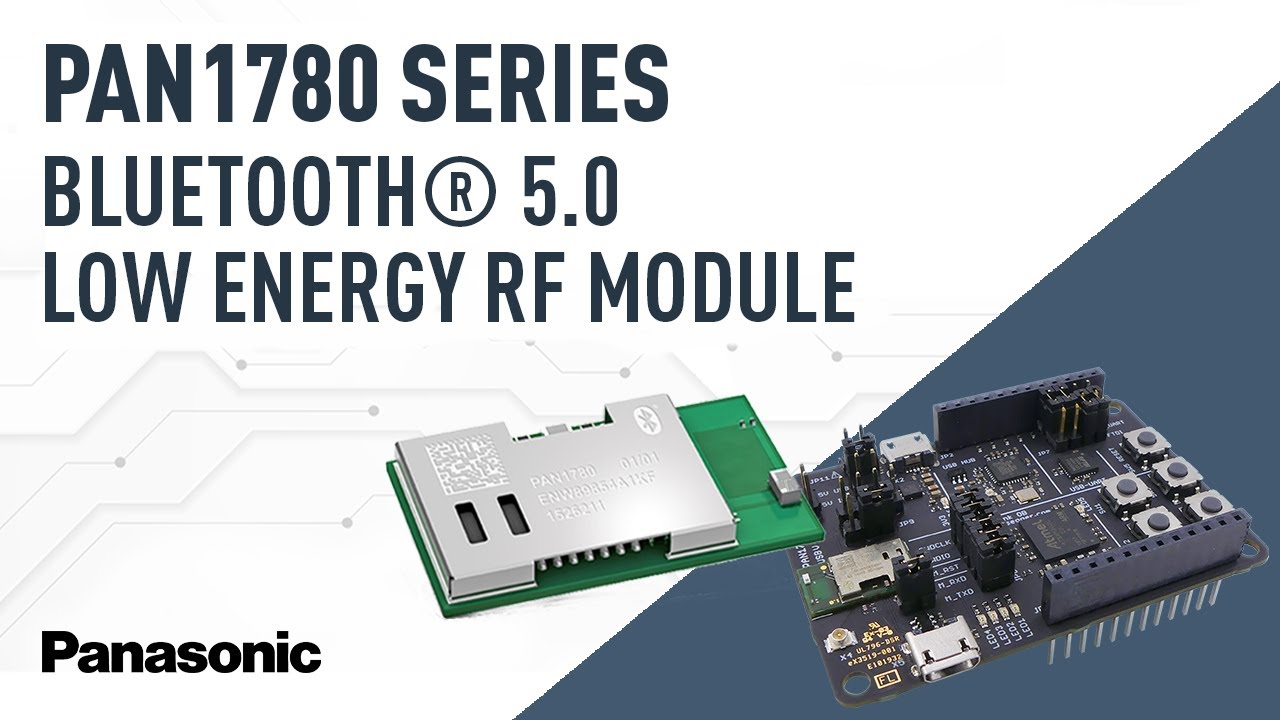

Thumbnail for Quick Clips: PAN1780 Series Bluetooth® 5.0 Low Energy
