Specifications
| Item | Performance characteristics |
|---|---|
| Size (mm) (mm) | 15.6 x 8.7 x 2.05 |
| Used IC | nRF52840 featuring ARM Cortex-M4F with 64 MHz |
| Rx Sensitivity (dBm) | -95 dBm at 1 Mb/s and -103 dBm at 125 kb/s |
| Programmable Tx Power (Max.) | 8 dBm (configurable from -20 dBm in 4 dB steps and -40 dBm in whisper mode) |
| Operating Temp. | -40 to +85 °C |
| Current Consum. | 4.8 mA in Tx (at 0 dBm) and 4.8 mA in Rx mode |
| Frequency Range | 2.400–2.4835 GHz ISM band |
| Date Rate (Max. Air) | 2Mbps |
Stock check

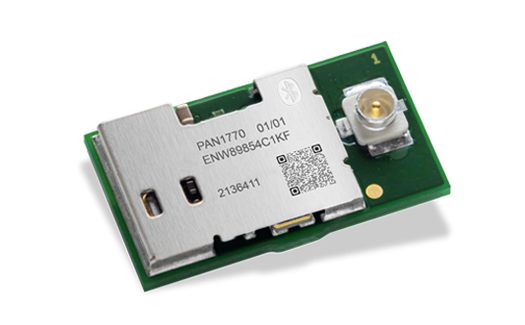

ENW-89854C1KF
