OS-CON™ Aluminum-Polymer

Designed for Long-Life with Conductive Polymer Technology

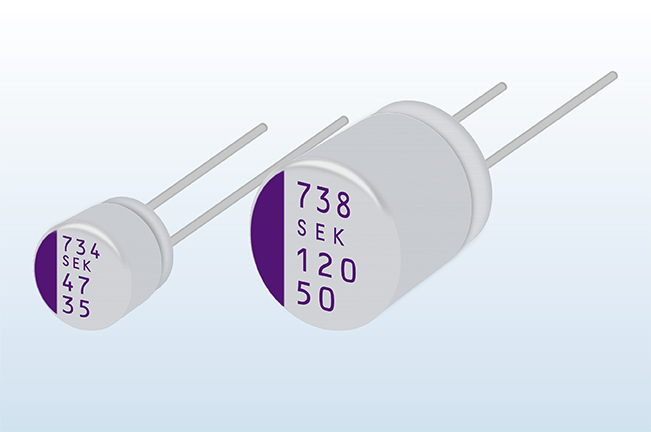

Panasonic's OS-CON™ Aluminum-Polymer Solid Capacitors are available in both surface-mount and through hole types. These Solid Electrolyte Aluminum OS-CON™ Capacitors utilize aluminum and a highly conductive polymer material to offer low ESR, excellent noice reduction and ripple current capabilities. The OS-CON Series parts are characterized by a long-life and minimal ESR changes throughout the entire product line’s rated temperature range.

OS-CON™ Capacitors for MLCC Replacement

The OS-CON product line features several suggested MLCC Alternative Series, which include SVPSVPFSVPCSVFSXVSVPKSVPSSVPA, SVQPSVPDSVPESVPB, and SVPG.

Series List

Results 21
Series table for lineup OS-CON™ Aluminum-Polymer
Series/TypeDatasheetFeaturesOperating Temperature Range (°C)Rated voltage range [DC] (V)Capacitance Range (µF)Size codeRoHS (Compliance Certificate)REACH (Report of Confirmation)
・High voltage (50V max)
・Large cap. (1000µF max)
・125℃,1000h guarantee
-55
to +125
16
to 50
27
to 1000
B6, C6, E7, E12, F10, F12
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・Low ESR (15 mΩ max.)
・Large cap. (560 µF max)
・125℃,20000h guarantee
-55
to +105
2.5
to 16
100
to 560
C65
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・High voltage (50V max)
-55
to +125
16
to 50
10
to 1200
B6, C6, E7, E12, F12
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・Super high voltage (100V max)
・125℃,1000h guarantee
-55
to +125
63
to 100
6.8
to 100
E7, F8, E12, F12
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・Low profile (4.5mm max)
・Low ESR (8mΩ)
・High ripple current
-55
to +105
16
to 25
15
to 270
B45, C8, C10
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・High voltage (50V max)
・Large cap. (1000µF max)
・105℃,5000h guarantee
-55
to +105
16
to 50
10
to 1000
B6, C6, E7, E10, E12, F10, F12
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・Standard
-55
to +105
2.5
to 20
3.3
to 1500
A5, B6, C6, E7, E12, F8, F12
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・Low ESR (18mΩ max)
・High ripple current
*Last digit of part numbers were lost for models over 13 digits part number.
2R5SVPA180MAA
2R5SVPA330MAA
-55
to +105
2.5
to 20
10
to 820
B6, C6, E7, F8
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・Low profile (5mm max)
-55
to +105
2.5
to 20
15
to 120
C5, C55
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
・Low ESR (9mΩ)
・Large cap. (2700µF)
-55
to +105
2.5
to 16
39
to 2700
B6, C6, E7, E12, F12
RoHS compliant (Please refer to the Related Information.)
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
