Polymer Capacitors: OS-CON Aluminum-Polymer Capacitors

OS-CON Aluminum-Polymer Capacitors design engineers Panasonic
Aluminum Polymer Capacitors - OSCON - Panasonic Industrial Devices

Designed For Long Life Span With Conductive Polymer

Panasonic's Capacitor product line has been expanded with OS-CON Aluminum-Polymer Solid Capacitors! Available in both surface mount and through hole types, the OS-CON product line spans several Series of Solid Electrolyte Aluminum Capacitors, which include the SVP, SVPC, SVPF, SVPE, SEP, SEPC, and SEPF Series. OS-CON Capacitors utilize aluminum and a highly conductive polymer material to offer low ESR, excellent noise reduction and ripple current capabilities. OS-CON parts are characterized by a long life span and minimal changes in ESR throughout the entire rated temperature range.

Request Additional Information. Contact Us.

Line Up

Body shapeSeries/TypeData SheetImageFeaturesCategory temperature range (℃)Rated voltage range (V.DC)Capacitance range (μF)Size codeInformation on RoHS complianceREACH 16th SVHC compliance
Column active Filter
Close

Filter by Body shape

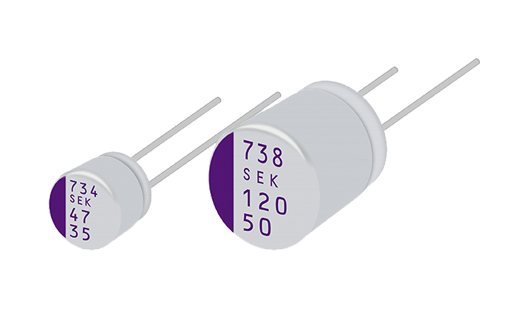

Radial Lead TypeSEFCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SEF › Data Sheet・High voltage: 35 V.DC max.
・Large cap.: 1000 uF max.		-55
to +125		16 to 3522 to 1000C6
E7
E12
F13		CertificateReport of Confirmation
Radial Lead TypeSEPGCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SEPG › Data Sheet・High ripple current: 5800 mAr.m.s
・Large cap.: 1000 uF max.		-55
to +105		16270
470		C9
C10
E9		CertificateReport of Confirmation
Radial Lead TypeSXECapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SXE › Data Sheet・Super high voltage: 100 V.DC max.
・125℃ 1000h		-55
to +125		63
to 100		6.8
to 68		E7
F8
E12
F13		CertificateReport of Confirmation
Radial Lead TypeSEQPCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SEQP › Data Sheet・105℃ 5000h
・Guaranteed at 125℃
・High voltage: 32 V.DC max.		-55
to +125		4.0
to 32		6.8
to 1200		C6
E7 E12
F8 F13		CertificateReport of Confirmation
Radial Lead TypeSEPFCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SEPF › Data Sheet・High voltage: 35 V.DC max.
・Large cap.: 1000 uF max.
・105℃ 5000h		-55
to +105		16
to 35		22
to 1000		C55 C6
E7 E12
F13		CertificateReport of Confirmation
Radial Lead TypeSEPCCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SEPC › Data Sheet・Super low ESR: 5 mΩ max.
・Large cap.: 2700 uF max.		-55
to +105		2.5
to 16		100
to 2700		B9
C55 C6 C7 C9
E7 E9 E12 E13
F13		CertificateReport of Confirmation
Radial Lead TypeSEPCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SEP › Data Sheet・Standard-55
to +105		2.5
to 20		22
to 1500		C6
E7 E12
F8 F13		CertificateReport of Confirmation

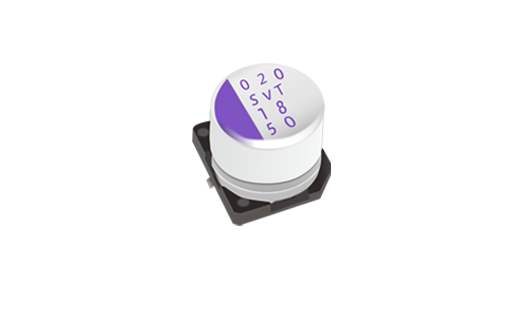

Surface Mount TypeSXVCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SXV › Data Sheet・Super high voltage: 100 V.DC max.
・125℃ 1000h		-55
to +125		63
to 100		6.8
to 68		E7
F8
E12
F12		CertificateReport of Confirmation

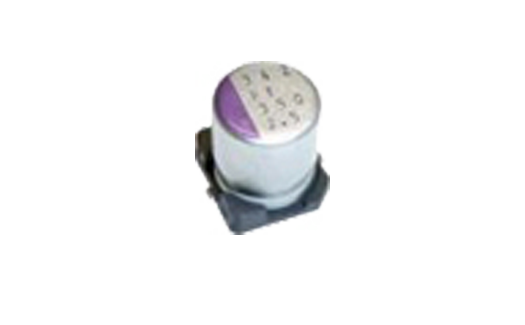

Surface Mount TypeSVPGCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SVPG › Data Sheet・Low profile: 4.5 mm max.
・Low ESR: 8 mΩ
・High ripple current		-55
to +105		16
to 25		15
to 270		B45
C10		CertificateReport of Confirmation
Surface Mount TypeSVPACapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SVPA › Data Sheet・Low ESR: 18 mΩ max.
・High ripple current
*Last digit of part numbers were lost for models over 13 digits part number.
2R5SVPA180MAA
2R5SVPA330MAA		-55
to +105		2.5
to 20		10
to 820		B6
C6
E7
F8		CertificateReport of Confirmation
Surface Mount TypeSVPBCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SVPB › Data Sheet・Low profile: 5 mm max.-55
to +105		2.5
to 20		15
to 120		C5 C55CertificateReport of Confirmation
Surface Mount TypeSVFCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SVF › Data Sheet・High voltage: 50 V.DC max.
・Large cap.: 1000 uF max.
・125℃ 1000h		-55
to +125		16 to 5027 to 1000B6
C6
E7
E12
F12		CertificateReport of Confirmation
Surface Mount TypeSVPDCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SVPD › Data Sheet・Guaranteed at 125℃
・High voltage 35 V.DC max.
・85℃ 85% RH		-55
to +125		10
to 35		8.2
to 82		C6
E7
F8 F12
E12		CertificateReport of Confirmation
Surface Mount TypeSVQPCapacitors › Polymer Capacitors › Conductive Polymer Aluminum Solid Capacitors (OS-CON) › SVQP › Data Sheet・Guaranteed at 125℃-55
to +125		4.0
to 20		22
to 220		C6
E7		CertificateReport of Confirmation
