R35K(0.35mm pitch)

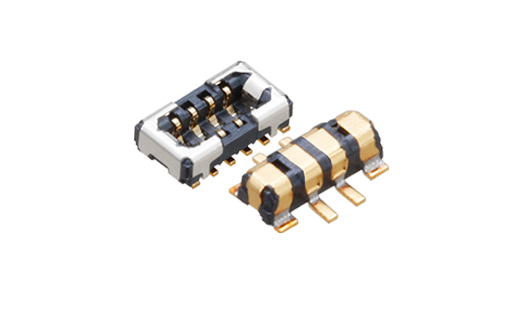

Panasonic’s R35K Narrow (Fine) Pitch Connector Series is an ultra-small 0.35mm pitch socket and header Connector pair that is available in a 4-pin solution. This Connector series uses power terminals on each end of the Connector to transmit 3A continuous current allowing for the connection of small Battery powered devices. The inner pins of the Connector are each rated 300mA for carrying signal as well.

The R35K Series Connectors also maintain the Panasonic unique Tough Contact construction consisting of bellowed contacts for shock and vibration resistance and v-notch construction shape which maintains 2 points of contact between socket and header pins. The robust structure and balancing of small size and high current capability makes the R35K Series ideal for consumer and industrial lightweight battery-powered device applications and various sensor module connections.

Features and Benefits:

  • Small Size: Very Small Surface Area Footprint Of 1.3mm x 2.24mm (4-Pins)
  • Low Profile: Mated Height 0.6mm
  • High Current Capability: Two (2) Power Pins to Support 3A Each for Power and 0.3A for the Signal Pins
  • High Retention Force: Unique Locking Structure Allows High Retention Force with a Small Footprint
  • Panasonic Tough Contact Construction
  • Robust Structure: Panasonic’s Insert Molded Metal Bracket Frame Around the Side of the Connector Provides Higher Mechanical Strength
  • RoHS / REACH Compliant

Part Number List

Results 2
Models table for series R35K(0.35mm pitch)
Part No.DatasheetSocket/HeaderNumber of PinsMated Height (mm)Packing Quantity; Inner Carton (Pcs.) Packing Quantity; Outer Carton (Pcs.)Family Name (Head of Product No.)TypeApplicationsTerminal Pitch (mm)Soldering TerminalsPositioning BossesBody Length (mm)Body Height (mm)Short Width Recommended PC Board Pattern Width (mm)Molded Portion Material Contact and Post MaterialSurface Treatment Material Rated CurrentInsulation Resistance (Min. MΩ)(Initial)Dielectric StrengthContact Resistance (M&Omega: Max.)Insertion and Removal Life (Times)Packing QuantityPiece Type
Socket
4
0.6mm
15,000 pieces (1-reel)
30,000 pieces
AXF5
BOARD-TO-FPC
Wearable devices, Hearable devices
0.35
with
without
2.24
0.59
1.30
1.50
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
3.0A/pin contact (Power terminal)
0.3A/pin contact (Signal terminal)
1000
150V AC for 1min.
Power terminal: Max. 30mΩ
Signal terminal: Max. 90mΩ
10
EMBOSSED TAPE AND PLASTIC REEL
2 Pieces type (Socket)
Header
4
0.6mm
15,000 pieces (1-reel)
30,000 pieces
AXF6
BOARD-TO-FPC
Wearable devices, Hearable devices
0.35
with
without
1.50
0.46
1.10
0.86
LCP resin (UL94V-0)
Copper alloy
Base: Ni plating Surface: Au plating
3.0A/pin contact (Power terminal)
0.3A/pin contact (Signal terminal)
1000
150V AC for 1min.
Power terminal: Max. 30mΩ
Signal terminal: Max. 90mΩ
10
EMBOSSED TAPE AND PLASTIC REEL
2 Pieces type (Header)
