Specifications
| Item | Performance characteristics |
|---|---|
| Socket/Header | Header |
| Number of Pins | 40 |
| Mated Height (mm) | 3.0mm |
| Packing Quantity; Inner Carton (Pcs.) | 1,500 pieces (1-reel) |
| Packing Quantity; Outer Carton (Pcs.) | 3,000 pieces |
| Family Name (Head of Product No.) | AXK6 |
| Type | BOARD-TO-BORAD |
| Applications | Mobile devices, Industrial equipment |
| Terminal Pitch (mm) | 0.5 |
| Soldering Terminals | without |
| Positioning Bosses | without |
| Body Length (mm) | 13.20 |
| Short Width | 4.60 |
| Body Height (mm) | 2.40 |
| Recommended PC Board Pattern Width (mm) | 5.60 |
| Molded Portion Material | Heat-resistant resin (UL94V-0) |
| Contact and Post Material | Copper alloy |
| Surface Treatment Material | Base: Ni plating Surface: Au plating |
| Rated Current | 0.5A/pin contact (Max. 10A at total pin contacts) |
| Insulation Resistance (Min. MΩ)(Initial) | 1000 |
| Dielectric Strength | 150V AC for 1min. |
| Contact Resistance (M&Omega: Max.) | 60 |
| Insertion and Removal Life (Times) | 50 |
| Packing Quantity | EMBOSSED TAPE AND PLASTIC REEL |
| Piece Type | 2 Pieces type (Header) |
| Short width (mm) | 4.60 |
Stock check

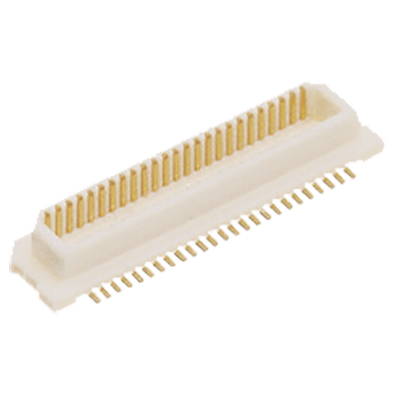

AXK640347YG
