Specifications
| Item | Performance characteristics |
|---|---|
| Zero-Cross Function | Zero-cross |
| Input Side: Rating voltage | 12V DC |
| Output Side: Max. Load Current | 3A |
| Output Side: Load Voltage | 75 to 250Vrms |
| Input Terminals Distance | 5.08mm |
| Type of Load | AC type |
| Package | SIL4pin |
| Terminal Type | Standard PC board terminal |
| Packing Quantity | Carton |
| Packing Quantity; Inner Carton (Pcs.) | 20 |
| Packing Quantity; Outer Carton (Pcs.) | 200 |
| Input Side: Input Voltage | 9.6 to 14.4V DC |
| Input Side: Input Impedance (Approx.) | 0.55kΩ |
| Input Side: Drop-Out Voltage | Min. 1.2V |
| Output: Non-Repetitive Surge Current | 80A |
| Output Side: Max. Off-State Leakage Current | 5mA/200Vrms applied |
| Operate Time (Initial) (at 20°C) | 1/2 cycle of voltage sine wave + 1ms |
| Release Time, Max. | 1/2 cycle of voltage sine wave + 1ms |
| I/O Isolation Voltage | 3,000 Vrms between input and output |
| Ambient Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +100°C |
| Snubber Circuit | With snubber circuit |
| Type Of Shape | Vertical |
| Load current (A) | 3 |
| Load Voltage [ V<sub>L</sub> ] | 75 to 250Vrms |
| Input voltage | 9.6 to 14.4V DC |
Stock check
AQ3A2-C1-ZT12VDC
Resources
Filter by:
Showing 1 to 2 of 2 results
Results2
What's New
Stay up to date
Latest Videos
Playlist
Features and Benefits of PhotoMOS®
Introduction to PhotoMOS®
New Product Spotlight: PhotoMOS® HE 1 Form A and HE SOP 1 Form A Series Relays
NPI: PhotoMOS® HF 1 Form A Series High Capacity Relays
NPI: Photovoltaic MOSFET PhotoMOS® Relays
New Product Brief: Photovoltaic MOSFET Driver High Power Type
NPI: PhotoMOS HF 1 Form A High Capacity Relays
NPI: PhotoMOS CC TSON 1 Form B

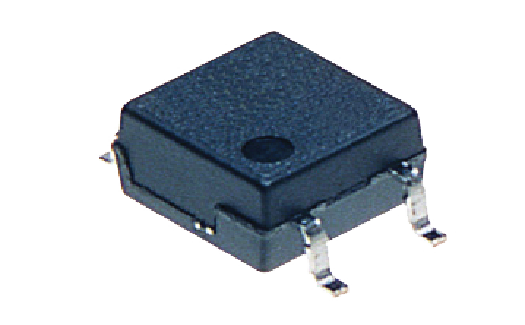

NPI: AQY215S PhotoMOS® Relays
