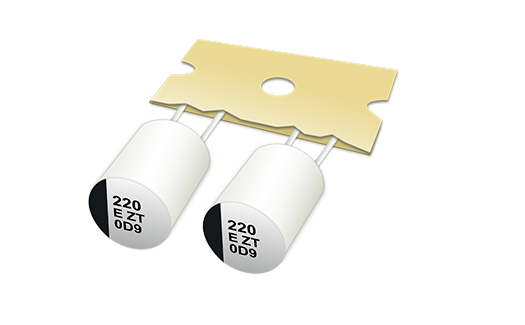

Hybrid Capacitors

High Endurance and High Ripple Current

Panasonic’s Hybrid Capacitors combine the benefits of Aluminum Electrolytic and Specialty Polymer Capacitors resulting in a Capacitor featuring high endurance, low-ESR, high tolerance for ripple current, inrush currents and elevated temperature. Hybrid Capacitors are known for their stable electric characteristics at high frequencies while maximizing reliability. These Hybrid Capacitors are compact, allowing significant board space savings and vibration-proof parts are also available.

Hybrid Capacitors for MLCC Replacement

The Hybrid Capacitor product line features many suggested MLCC Alternative Series, which include EEH-ZA, EEH-ZC, EEH-ZE and EEH-ZK.

MLCC Alternative Banner

Line Up

Body shapeSeries/TypeData SheetImageCategory temp. range (℃)Endurance (h)FeaturesRated W.V. Range (V.DC)Nominal Cap. Range (μF)AEC-Q200RoHS (Compliance Certificate)REACH (Report of Confirmation)
Column active Filter
Close

Filter by Body shape


Surface Mount Type (Conductive Polymer Hybrid)ZS (High temp. reflow)-55 to +1254000・High temperature
・High ripple current
・125℃/4000h guarantee
25 to 63150 to 560AEC-Q200 compliantN/AN/A
Radial Lead Type (Conductive Polymer Hybrid)ZF-55 to +1501000・High temperature
・150℃/1000h guarantee
25 to 6333 to 270AEC-Q200 compliantN/AN/A
Surface Mount Type (Conductive Polymer Hybrid)ZA (High temp. reflow)-55 to +10510000・105℃/10000h guarantee
・High voltage: 80 V.DC max.
25 to 8010 to 330AEC-Q200 compliantCertificateReport of Confirmation
Surface Mount Type (Conductive Polymer Hybrid)ZC (High temp. reflow)-55 to +1254000・125℃/4000h guarantee
・High voltage: 80 V.DC max.
25 to 8010 to 330AEC-Q200 compliantCertificateReport of Confirmation
Surface Mount Type (Conductive Polymer Hybrid)ZK (High temp. reflow)-55 to +1254000・Large capacitance
・High ripple current
・125℃/4000h guarantee
25 to 3533 to 470AEC-Q200 compliantCertificateReport of Confirmation
Surface Mount Type (Conductive Polymer Hybrid)ZE (High temp. reflow)-55 to +1452000(145℃)
4000(135℃)
・High temperature
・High ripple current
・145℃/2000h guarantee
25 to 6333 to 330AEC-Q200 compliantCertificateReport of Confirmation
