SP-CAP™ Polymer Aluminum

Ultra-low ESR, High Voltage Capacitors

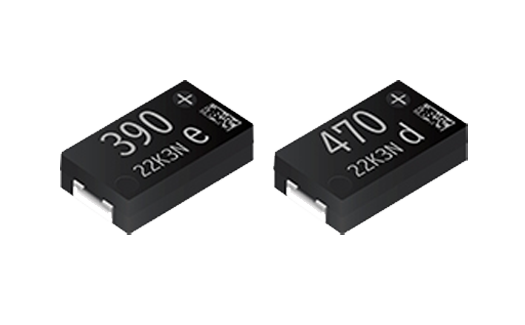

Panasonic’s industry leading SP-Cap™ Polymer Aluminum Capacitors, are Surface-Mount (SMT) Capacitors that utilize a conductive polymer as their electrolyte material in a layered aluminum design. SP-Cap Capacitors are primarily used as input and output Capacitors for DC/DC converters due to ultra-low ESR values, high voltage options and the ability to withstand high reflow temperatures. These Capacitors are free from temperature drifts, offering capacitance values up to 560µF and voltage values ranging from 2V to 25V.

SP-Cap™ Capacitors for MLCC Replacement

The SP-Cap product line features several suggested MLCC Alternative Series, which include:

EEF-CS/CT/CX, EEF-SX, EEF-HX, EEF-SR, EEF-LR, ;EEF-SS/ST, EEF-LS/LT, EEF-GX, EEF-LX, and ECG-CY/SY.

Series table for lineup SP-CAP™ Polymer Aluminum
Series/Type	Endurance (h)	Rated Voltage Range (DC) (V)	Features	RoHS (Compliance Certificate)	Capacitance Range (µF)	Reach (Report of Confirmation)	Operating Temperature Range (°C)
GY Series	2000	2 to 2.5	・Super low ESR(3 mΩ max.）・Large capacitance(820 μF max.）・High ripple current(10200 mA rms max.）	RoHS compliant (Please refer to the Related Information.)	680 to 820	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105

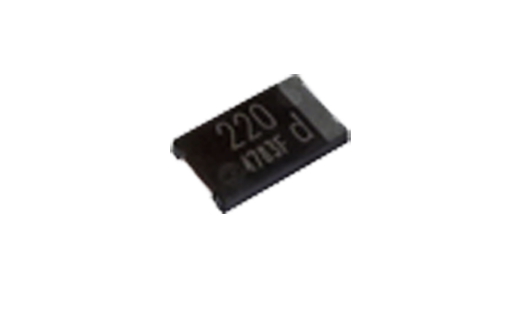

CS,CT,CX Series	2000	2 to 35	･Low profile (1.1mm to 1.9 mm) ･High ripple current (5.6Arms max)	RoHS compliant (Please refer to the Related Information.)	CS: 10 to 120 CT: 15 to 180 CX: 15 to 560	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
EEF-SR Series	2000	2 to 6.3	･Low profile (1mm max) ･Low ESR (4.5mΩ to 9mΩ)	RoHS compliant (Please refer to the Related Information.)	68 to 220	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105

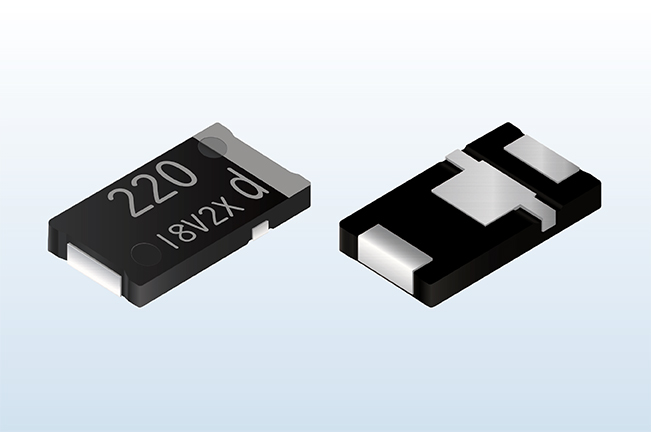

LR Series	2000	2 to 6.3	･Low profile (1mm max) ･Low ESR (4.5mΩ to 9mΩ) ･Low ESL (3-terminals)	RoHS compliant (Please refer to the Related Information.)	68 to 220	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
SS, ST Series	2000	2 to 2.5	･Low profile (1.1mm (SS), 1.4mm (ST)) ･Low ESR (6mΩ)	RoHS compliant (Please refer to the Related Information.)	SS: 180 to 220 ST: 270 to 330	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
LS, LT Series	2000	2 to 2.5	･Low profile (1.1mm (LS), 1.4mm (LT)) ･Low ESR (6mΩ) ･Low ESL (3-terminals)	RoHS compliant (Please refer to the Related Information.)	LS: 180 to 220 LT: 270 to 330	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105

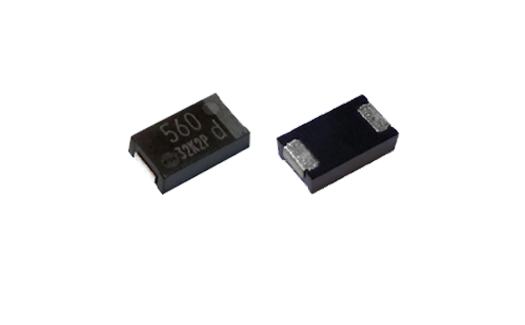

SX Series	2000	2 to 6.3	･Large cap. (560uF max) ･Low ESR (4.5mΩ to 9mΩ)	RoHS compliant (Please refer to the Related Information.)	82 to 560	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105

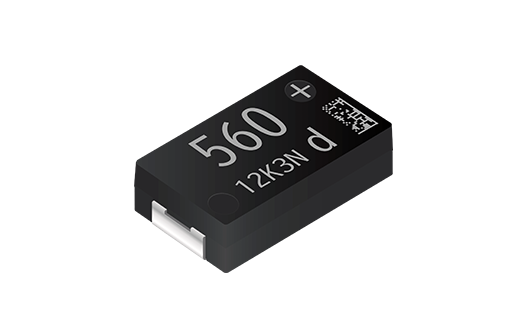

GX Series	2000	2 to 2.5	･Large cap. (560uF max) ･Super low ESR (3mΩ max)	RoHS compliant (Please refer to the Related Information.)	330 to 560	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
LX Series	2000	2 to 2.5	･Large cap. (560uF max) ･Low ESR (4.5, 6 mΩ) ･Low ESL (3-terminals)	RoHS compliant (Please refer to the Related Information.)	330 to 560	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
CY.SY Series	2000	4, 6.3	･85℃,2000h guarantee	RoHS compliant (Please refer to the Related Information.)	330 to 470	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +85

Series table for lineup SP-CAP™ Polymer Aluminum
Series/Type	Endurance (h)	Rated Voltage Range (DC) (V)	Features	RoHS (Compliance Certificate)	Capacitance Range (µF)	Reach (Report of Confirmation)	Operating Temperature Range (°C)
GY Series	2000	2 to 2.5	・Super low ESR(3 mΩ max.）・Large capacitance(820 μF max.）・High ripple current(10200 mA rms max.）	RoHS compliant (Please refer to the Related Information.)	680 to 820	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
CS,CT,CX Series	2000	2 to 35	･Low profile (1.1mm to 1.9 mm) ･High ripple current (5.6Arms max)	RoHS compliant (Please refer to the Related Information.)	CS: 10 to 120 CT: 15 to 180 CX: 15 to 560	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
EEF-SR Series	2000	2 to 6.3	･Low profile (1mm max) ･Low ESR (4.5mΩ to 9mΩ)	RoHS compliant (Please refer to the Related Information.)	68 to 220	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
LR Series	2000	2 to 6.3	･Low profile (1mm max) ･Low ESR (4.5mΩ to 9mΩ) ･Low ESL (3-terminals)	RoHS compliant (Please refer to the Related Information.)	68 to 220	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
SS, ST Series	2000	2 to 2.5	･Low profile (1.1mm (SS), 1.4mm (ST)) ･Low ESR (6mΩ)	RoHS compliant (Please refer to the Related Information.)	SS: 180 to 220 ST: 270 to 330	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
LS, LT Series	2000	2 to 2.5	･Low profile (1.1mm (LS), 1.4mm (LT)) ･Low ESR (6mΩ) ･Low ESL (3-terminals)	RoHS compliant (Please refer to the Related Information.)	LS: 180 to 220 LT: 270 to 330	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
SX Series	2000	2 to 6.3	･Large cap. (560uF max) ･Low ESR (4.5mΩ to 9mΩ)	RoHS compliant (Please refer to the Related Information.)	82 to 560	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
GX Series	2000	2 to 2.5	･Large cap. (560uF max) ･Super low ESR (3mΩ max)	RoHS compliant (Please refer to the Related Information.)	330 to 560	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
LX Series	2000	2 to 2.5	･Large cap. (560uF max) ･Low ESR (4.5, 6 mΩ) ･Low ESL (3-terminals)	RoHS compliant (Please refer to the Related Information.)	330 to 560	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +105
CY.SY Series	2000	4, 6.3	･85℃,2000h guarantee	RoHS compliant (Please refer to the Related Information.)	330 to 470	SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)	-55 to +85

What's New

Stay up to date

View All

There Is No Relation Between Panasonic Polymer Capacitors And Graphics Card Failures

Capacitors Icon

There Is No Relation Between Panasonic Polymer Capacitors And Graphics Card Failures

EEF-GY Series SP-Cap™ Specialty Conductive Polymer Aluminum Electrolytic Capacitors

Capacitors Icon

EEF-GY Series SP-Cap™ Specialty Conductive Polymer Aluminum Electrolytic Capacitors

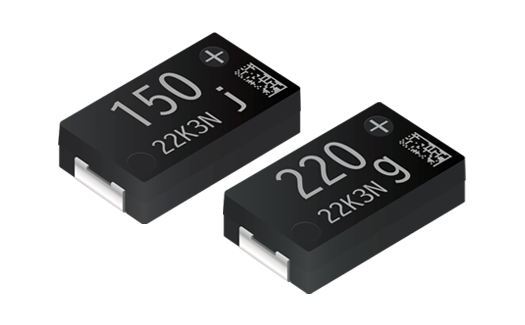

NEW CY / SY Series SP-Cap™ Specialty Conductive Polymer Aluminum Electrolytic Capacitors
