R-G515S/R-G510S

Specifications

Specifications table for model R-G515S/R-G510S
ItemPerformance characteristics
Tg (DMA) (°C)220-240
Dk at 1 GHz4.2
Df at 1 GHz0.008
CTE-X, <Tg (ppm/℃)4-6
CTE α1 Y-axis: Test Method Internal; Condition A (ppm/℃)4-6
Flexural Modulus: Test method JIS C 6481; Condition 25℃ (GPa)28
Flexural Modulus: Test method JIS C 6481; Condition 250℃ (GPa)-
Peel Strength 1/3 oz (12μm): Test method IPC-TM-650 2.4.8; Condition A (kN/m)0.7
Thickness Line-up (mm)0.03-0.2

Stock check

Model image for R-G515S/R-G510S

R-G515S/R-G510S

What's New

Stay up to date

View All
New Semiconductor Substrate Material, R-1515V, Improves Assembly-Level Reliability
Aug 1, 2024

New Semiconductor Substrate Material, R-1515V, Improves Assembly-Level Reliability

IC Packaging Materials

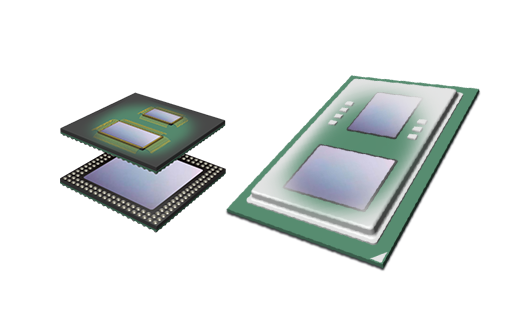

Introducing Panasonic IC Packaging Materials
