Specification

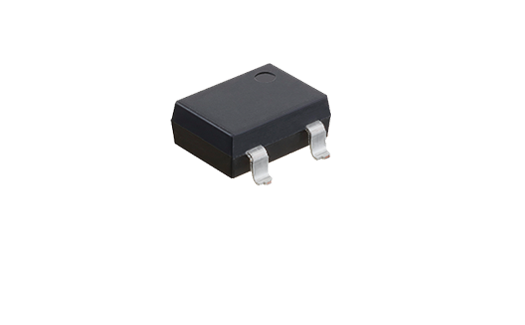

Specifications table for model AQV258H5A
ItemPerformance characteristics
PackageDIP6
Voltage TypeAC/DC
Load Voltage [ V<sub>L</sub> ] (V<sub>L</sub>)1,500 V
Load current20 mA
Terminal TypeSurface-mount terminal
Packing QuantityTube packing style
Product NameHE 1 Form A
TypeHE
LED Forward Current (I<sub>F</sub>)50 mA
LED Reverse Voltage (V<sub>R</sub>)5 V
Peak Forward Current (I<sub>FP</sub>)1 A
Power Dissipation (P<sub>in</sub>)75 mW
Continuous Load Current (I<sub>L</sub>)0.02 A
Peak Load Current (I<sub>peak</sub>)0.06 A
Power Dissipation (P<sub>out</sub>)360 mW
Total Power Dissipation (P<sub>t</sub>)410 mW
I/O Isolation Voltage (V<sub>iso</sub>)5,000 Vrms
Ambient Temperature: Operating (T<sub>opr</sub>)-40 to +85°C
Ambient Temperature: Storage (T<sub>stg</sub>)-40 to +100°C
LED Operate Current (Typical)1.4 mA
LED Operate Current (Maximum)3.0 mA
LED Turn Off Current (Minimum) 0.2 mA
LED Turn Off Current (Typical) 1.3 mA
LED Dropout Voltage (Typical) (V<sub>F</sub>)1.32 V
LED Dropout Voltage (Maximum) (V<sub>F</sub>)1.5 V
On Resistance (Typical) (R<sub>on</sub>)315 ohm
On Resistance (Maximum) (R<sub>on</sub>)500 ohm
Off State Leakage Current (Maximum) (I<sub>Leak</sub>)10μA
Over Current ProtectionNothing
Turn On Time (Typical) 0.35 ms
Turn On Time (Maximum) 1.0 ms
Turn Off Time (Typical)0.04 ms
Turn Off Time (Maximum)0.2 ms
I/O Capacitance (Typical) (C<sub>iso</sub>)1.3 pF
I/O Capacitance (Maximum) (C<sub>iso</sub>)3 pF
Initial I/O Isolation Resistance (Minimum) (R<sub>iso</sub>)1,000 M ohm
LED Current (I<sub>F</sub>)Min.: 5 mA, Max.: 30 mA
Load Voltage (V<sub>L</sub>)Max.: 1,200 V
Continuous Load Current (I<sub>L</sub>)Max.: 0.02 A
Contact Arrangement1 Form A
External Dimensions
Recommended Mounting Pad (Top View)
Junction temperature (T<sub>j</sub>)125°C
Packing quantity<br>1-tube (pcs.)50
Packing quantity<br>Outer carton (pcs.)500
