PhotoMOS HE 1 Form A High Capacity

Panasonic’s AQV-25*G** Series PhotoMOS® HE 1 Form A High Capacity Semiconductor Relays are MOSFET-enabled Solid State Relays featuring low off-state leakage current and stable on-resistance over the component lifetime. With 1 Form A Type contact arrangement and high capacity ratings, these Panasonic Relays are ideal for security equipment, fire-preventing systems, industrial machines, and HVAC applications.

Features:

  • Significantly Increased Load Current in a Compact DIP Package
  • Continuous Load Current: 3.5A (AQV252G3)
  • Greatly Improved Specifications Allow for Usage in Place of Mercury and Mechanical Relays
  • Low On-resistance (Typ. 33mΩ, AQV252G3)

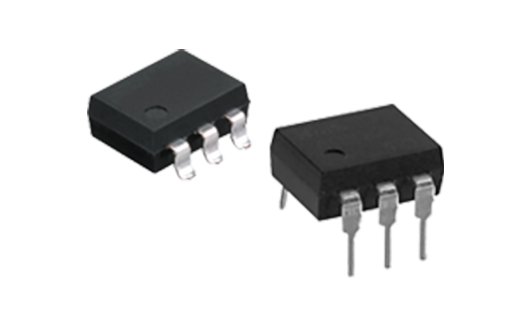

Series image for PhotoMOS HE 1 Form A High Capacity

PhotoMOS HE 1 Form A High Capacity

Part number list

Results 8
Models table for series PhotoMOS HE 1 Form A High Capacity
Part No.DatasheetPackageVoltage TypeLoad Voltage [ VL ] (VL)Continuous Load Current (IL)I/O Isolation Voltage (Viso)Terminal TypePacking QuantityProduct NameTypeLED Forward Current (IF)LED Reverse Voltage (VR)Peak Forward Current (IFP)Power Dissipation (Pin)Peak Load Current (Ipeak)Power Dissipation (Pout)Total Power Dissipation (Pt)Ambient Temperature: Operating (Topr)Ambient Temperature: Storage (Tstg)LED Operate Current (Typical) LED Operate Current (Maximum)LED Turn Off Current (Minimum) LED Turn Off Current (Typical) LED Dropout Voltage (Typical) (VF)LED Dropout Voltage (Maximum) (VF)On Resistance (Typical) (Ron)On Resistance (Maximum) (Ron)Off State Leakage Current (Maximum) (ILeak)Over Current ProtectionTurn On Time (Typical) Turn On Time (Maximum) Turn Off Time (Typical)Turn Off Time (Maximum)I/O Capacitance (Typical) (Ciso)I/O Capacitance (Maximum) (Ciso)Initial I/O Isolation Resistance (Minimum) (Riso)Maximum Switching Frequency LED Current (IF)Load Voltage (VL)Continuous Load Current (IL)Contact ArrangementExternal DimensionsRecommended Mounting Pad (Top View) PC Board Pattern (Bottom View) Load currentJunction temperature (Tj)Packing quantity
1-tube (pcs.)		Packing quantity
Outer carton (pcs.)		Packing quantity
1-reel (pcs.)
AQV252G3AZ
DIP6
AC/DC
60 V
3.5 A
1,500 Vrms
Surface-mount terminal
Tape and reel packing style (Z)
HE 1 Form A High Capacity
HE
50 mA
5 V
1 A
75 mW
10 A
600 mW
650 mW
-40 to +85℃
-40 to +100℃
0.5 mA
3 mA
0.2 mA
0.4 mA
1.32 V
1.5 V
0.033 Ω
0.06 Ω
1μA
Nothing
1.8 ms
5 ms
0.15 ms
0.5 ms
0.8 pF
1.5 pF
1,000 M ohm
2.5 cps
Min.: 5 mA, Max.: 30 mA
Max.: 48 V
Max.: 3.3 A
1 Form A
3.5 A
125℃
1,000
1,000
AQV255G3
DIP6
AC/DC
100 V
2.4 A
1,500 Vrms
Through hole terminal
Tube packing style
HE 1 Form A High Capacity
HE
50 mA
5 V
1 A
75 mW
7.0 A
600 mW
650 mW
-40 to +85℃
-40 to +100℃
0.5 mA
3 mA
0.2 mA
0.4 mA
1.32 V
1.5 V
0.07 Ω
0.12 Ω
1μA
Nothing
1.8 ms
5 ms
0.15 ms
0.5 ms
0.8 pF
1.5 pF
1,000 M ohm
2.5 cps
Min.: 5 mA, Max.: 30 mA
Max.: 80 V
Max.: 2.4 A
1 Form A
2.4 A
125℃
50
500
AQV255G3AZ
DIP6
AC/DC
100 V
2.4 A
1,500 Vrms
Surface-mount terminal
Tape and reel packing style (Z)
HE 1 Form A High Capacity
HE
50 mA
5 V
1 A
75 mW
7.0 A
600 mW
650 mW
-40 to +85℃
-40 to +100℃
0.5 mA
3 mA
0.2 mA
0.4 mA
1.32 V
1.5 V
0.07 Ω
0.12 Ω
1μA
Nothing
1.8 ms
5 ms
0.15 ms
0.5 ms
0.8 pF
1.5 pF
1,000 M ohm
2.5 cps
Min.: 5 mA, Max.: 30 mA
Max.: 80 V
Max.: 2.4 A
1 Form A
2.4 A
125℃
1,000
1,000
AQV252G3
DIP6
AC/DC
60 V
3.5 A
1,500 Vrms
Through hole terminal
Tube packing style
HE 1 Form A High Capacity
HE
50 mA
5 V
1 A
75 mW
10 A
600 mW
650 mW
-40 to +85℃
-40 to +100℃
0.5 mA
3 mA
0.2 mA
0.4 mA
1.32 V
1.5 V
0.033 Ω
0.06 Ω
1μA
Nothing
1.8 ms
5 ms
0.15 ms
0.5 ms
0.8 pF
1.5 pF
1,000 M ohm
2.5 cps
Min.: 5 mA, Max.: 30 mA
Max.: 48 V
Max.: 3.3 A
1 Form A
3.5 A
125℃
50
500
AQV252G3AX
DIP6
AC/DC
60 V
3.5 A
1,500 Vrms
Surface-mount terminal
Tape and reel packing style (X)
HE 1 Form A High Capacity
HE
50 mA
5 V
1 A
75 mW
10 A
600 mW
650 mW
-40 to +85℃
-40 to +100℃
0.5 mA
3 mA
0.2 mA
0.4 mA
1.32 V
1.5 V
0.033 Ω
0.06 Ω
1μA
Nothing
1.8 ms
5 ms
0.15 ms
0.5 ms
0.8 pF
1.5 pF
1,000 M ohm
2.5 cps
Min.: 5 mA, Max.: 30 mA
Max.: 48 V
Max.: 3.3 A
1 Form A
3.5 A
125℃
1,000
1,000
AQV255G3A
DIP6
AC/DC
100 V
2.4 A
1,500 Vrms
Surface-mount terminal
Tube packing style
HE 1 Form A High Capacity
HE
50 mA
5 V
1 A
75 mW
7.0 A
600 mW
650 mW
-40 to +85℃
-40 to +100℃
0.5 mA
3 mA
0.2 mA
0.4 mA
1.32 V
1.5 V
0.07 Ω
0.12 Ω
1μA
Nothing
1.8 ms
5 ms
0.15 ms
0.5 ms
0.8 pF
1.5 pF
1,000 M ohm
2.5 cps
Min.: 5 mA, Max.: 30 mA
Max.: 80 V
Max.: 2.4 A
1 Form A
2.4 A
125℃
50
500
AQV255G3AX
DIP6
AC/DC
100 V
2.4 A
1,500 Vrms
Surface-mount terminal
Tape and reel packing style (X)
HE 1 Form A High Capacity
HE
50 mA
5 V
1 A
75 mW
7.0 A
600 mW
650 mW
-40 to +85℃
-40 to +100℃
0.5 mA
3 mA
0.2 mA
0.4 mA
1.32 V
1.5 V
0.07 Ω
0.12 Ω
1μA
Nothing
1.8 ms
5 ms
0.15 ms
0.5 ms
0.8 pF
1.5 pF
1,000 M ohm
2.5 cps
Min.: 5 mA, Max.: 30 mA
Max.: 80 V
Max.: 2.4 A
1 Form A
2.4 A
125℃
1,000
1,000
AQV252G3A
DIP6
AC/DC
60 V
3.5 A
1,500 Vrms
Surface-mount terminal
Tube packing style
HE 1 Form A High Capacity
HE
50 mA
5 V
1 A
75 mW
10 A
600 mW
650 mW
-40 to +85℃
-40 to +100℃
0.5 mA
3 mA
0.2 mA
0.4 mA
1.32 V
1.5 V
0.033 Ω
0.06 Ω
1μA
Nothing
1.8 ms
5 ms
0.15 ms
0.5 ms
0.8 pF
1.5 pF
1,000 M ohm
2.5 cps
Min.: 5 mA, Max.: 30 mA
Max.: 48 V
Max.: 3.3 A
1 Form A
3.5 A
125℃
50
500
