Item | Performance characteristics |
---|---|

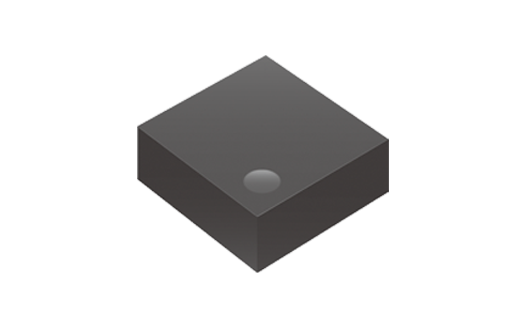

Package | TSON |
Terminal Type | Surface-mount terminal |
Contact Arrangement | 1 Form B |
Packing Quantity | Tape and reel packing style (1X) |
Voltage Type | AC/DC |
Load Voltage [ V<sub>L</sub> ] | 60 V |
Load current | 0.15 A |
I/O Isolation Voltage (V<sub>iso</sub>) | 200 Vrms |
Product Name | CC TSON 1 Form B |
Type | CC |
Packing quantity<br>1-reel (pcs.) | 1,000 |
Packing quantity<br>Outer carton (pcs.) | 1,000 |
Input Voltage (V<sub>IN</sub>) | 5.5 V |
Input Reverse Voltage (V<sub>RIN</sub>) | 0.2 V |
Power Dissipation (P<sub>in</sub>) | 1.2 mW |
Load Voltage [ V<sub>L</sub> ] (V<sub>L</sub>) | 60 V |
Continuous Load Current (I<sub>L</sub>) | 0.15 A |
Peak Load Current (I<sub>peak</sub>) | 0.4 A |
Power Dissipation (P<sub>out</sub>) | 250 mW |
Total Power Dissipation (P<sub>t</sub>) | 250 mW |
Ambient Temperature: Operating (T<sub>opr</sub>) | -40 to +105°C |
Ambient Temperature: Storage (T<sub>stg</sub>) | -40 to +125°C |
Operate Voltage (Typical) (V<sub>Fon</sub>) | 1.6 V |
Operate Voltage (Maximum) (V<sub>Fon</sub>) | 2.5 V |
Turn Off Voltage (Minimum) (V<sub>Foff</sub>) | 0.5 V |
Turn Off Voltage (Typical) (V<sub>Foff</sub>) | 1.4 V |
Input Current (Typical) (I<sub>IN</sub>) | 0.09 mA |
Input Current (Maximum) (I<sub>IN</sub>) | 0.2 mA |
On Resistance (Typical) (R<sub>on</sub>) | 4 ohm |
On Resistance (Maximum) (R<sub>on</sub>) | 8 ohm |
Off State Leakage Current (Maximum) (I<sub>Leak</sub>) | 10nA |
Over Current Protection | Nothing |
Turn On Time (Typical) | 0.06 ms |
Turn On Time (Maximum) | 0.5 ms |
Turn Off Time (Typical) | 0.5 ms |
Turn Off Time (Maximum) | 1.5 ms |
I/O Capacitance (Typical) (C<sub>iso</sub>) | 1.2 pF |
I/O Capacitance (Maximum) (C<sub>iso</sub>) | 3 pF |
Input Voltage (V<sub>IN</sub>) | Min.: 3 V, Max.: 5 V |
Load Voltage (V<sub>L</sub>) | Max.: 30 V |
Continuous Load Current (I<sub>L</sub>) | Max.: 0.15 A |
