SVPG Series

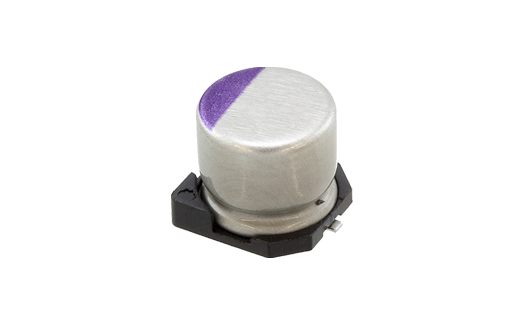

Panasonic's SVPG Series OS-CON™ Capacitors offer low ESR and a high ripple current with an endurance of 5000h at 105°C. These OS-CON™ Capacitors utilize aluminum and a highly conductive polymer material to offer low ESR, excellent noise reduction and ripple current capabilities. The OS-CON™ Series parts are characterized by a long-life and minimal ESR changes throughout the entire product line’s rated temperature range. Now available in 20V to 25V rated voltage.

Features

Low Profile (Height 4.5 mm max.)
Low ESR (6.5 mΩ max.)
RoHS Compliance
Halogen Free

Benefits

Highly Stable Temperature Characteristics
Long Lifetime at High Temperatures
Can Be Used in Industrial Applications

SVPG Series

Part number list

Results 25

Models table for series SVPG Series
Part No.	Body Type	Rated Voltage (V)	Capacitance (µF)	Body Diameter (mm)	Body Length (mm)	Size Code	Rated Ripple Current-1 (mArms)	ESR (mΩ)	Dissipation Factor [Max.]	Leakage Current [Max.] (μA)	Endurance@Temp.-1	Temperature Range (°C)	Minimum Packaging Quantity (piece)	Polarity Type	Rated Ripple Current-1 (temp.) (°C)	Tolerance on Capacitance (%)	Forming & Packaging Feature	Rated Ripple Current-1 (freq.) (kHz)	ESR Frequency (kHz)	Weight [Typ.] (g)
20SVPG470M	Surface mount type (vertical mount style)	20	470	8	11.9	E12	5850	10	0.12	1880	5000@105°C	-55 to 105	400	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.91
25SVPG120MX	Surface mount type (vertical mount style)	25	120	6.3	7.9	C8	3900	15	0.12	600	5000@105°C	-55 to 105	900	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.43
20SVPG680M	Surface mount type (vertical mount style)	20	680	10	12.6	F12	6200	9	0.12	2720	5000@105°C	-55 to 105	400	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	1.47
20SVPG180M	Surface mount type (vertical mount style)	20	180	6.3	9.9	C10	4700	11	0.12	720	5000@105°C	-55 to 105	500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.47
16SVPG330M	Surface mount type (vertical mount style)	16	330	6.3	10.4	C10L	7500	6.5	0.12	1056	5000@105°C	-55 to 105	700	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.56
16SVPG47M	Surface mount type (vertical mount style)	16	47	5	4.4	B45	3200	25	0.12	150	5000@105°C	-55 to 105	2500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.16
25SVPG15M	Surface mount type (vertical mount style)	25	15	5	4.4	B45	2800	30	0.12	75	5000@105°C	-55 to 105	2500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.16
16SVPG560M	Surface mount type (vertical mount style)	16	560	8	10	E10	5200	10	0.12	1792	5000@105°C	-55 to 105	500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.78
16SVPG1200M	Surface mount type (vertical mount style)	16	1200	10	12.6	F12	7000	7	0.12	3840	5000@105°C	-55 to 105	400	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	1.47
16SVPG100M	Surface mount type (vertical mount style)	16	100	5	5.9	B6	4000	15	0.12	320	5000@105°C	-55 to 105	1500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.21

Models table for series SVPG Series
Part No.	Body Type	Rated Voltage (V)	Capacitance (µF)	Body Diameter (mm)	Body Length (mm)	Size Code	Rated Ripple Current-1 (mArms)	ESR (mΩ)	Dissipation Factor [Max.]	Leakage Current [Max.] (μA)	Endurance@Temp.-1	Temperature Range (°C)	Minimum Packaging Quantity (piece)	Polarity Type	Rated Ripple Current-1 (temp.) (°C)	Tolerance on Capacitance (%)	Forming & Packaging Feature	Rated Ripple Current-1 (freq.) (kHz)	ESR Frequency (kHz)	Weight [Typ.] (g)
20SVPG470M	Surface mount type (vertical mount style)	20	470	8	11.9	E12	5850	10	0.12	1880	5000@105°C	-55 to 105	400	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.91
25SVPG120MX	Surface mount type (vertical mount style)	25	120	6.3	7.9	C8	3900	15	0.12	600	5000@105°C	-55 to 105	900	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.43
20SVPG680M	Surface mount type (vertical mount style)	20	680	10	12.6	F12	6200	9	0.12	2720	5000@105°C	-55 to 105	400	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	1.47
20SVPG180M	Surface mount type (vertical mount style)	20	180	6.3	9.9	C10	4700	11	0.12	720	5000@105°C	-55 to 105	500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.47
16SVPG330M	Surface mount type (vertical mount style)	16	330	6.3	10.4	C10L	7500	6.5	0.12	1056	5000@105°C	-55 to 105	700	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.56
16SVPG47M	Surface mount type (vertical mount style)	16	47	5	4.4	B45	3200	25	0.12	150	5000@105°C	-55 to 105	2500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.16
25SVPG15M	Surface mount type (vertical mount style)	25	15	5	4.4	B45	2800	30	0.12	75	5000@105°C	-55 to 105	2500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.16
16SVPG560M	Surface mount type (vertical mount style)	16	560	8	10	E10	5200	10	0.12	1792	5000@105°C	-55 to 105	500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.78
16SVPG1200M	Surface mount type (vertical mount style)	16	1200	10	12.6	F12	7000	7	0.12	3840	5000@105°C	-55 to 105	400	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	1.47
16SVPG100M	Surface mount type (vertical mount style)	16	100	5	5.9	B6	4000	15	0.12	320	5000@105°C	-55 to 105	1500	Polar	105	-20 to 20	Embossed carrier taping (reel packing)	100	100	0.21
