SVPT Series

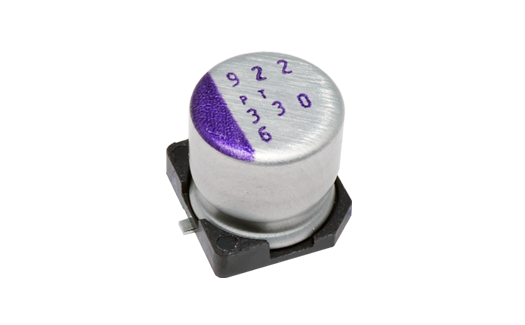

With A Wide Capacitance Range Of 18 to 2700 µF, The OS-CON™ SVPT Series Offers 20,000 Hours At 105°C!

Panasonic's SVPT Series is ideal for high-temperature environments combined with high endurance up to 20,000 hours. OS-CON™ Capacitors utilize aluminum and a high conductivity polymer material to offer low ESR, excellent noise reduction and ripple current capabilities. OS-CON™ parts are characterized by a long life span and minimal changes in ESR throughout the entire rated temperature range.

Features of SVPT Series

Endurance: 20,000 hours 105°C
Capacitance Range: 18 to 2700 µF
Temperature Range: -55°C to +105°C
Voltage Range: 2.5 V.DC To 150 V.DC
15 to 24 mΩ ESR Max.
Halogen Free
RoHS and REACH Compliant

Benefits of SVPT Series

Highly Stable Temperature Characteristics
Long Lifetime at High Temperatures
Can Be Used Widely in Industrial Applications

SVPT Series

Part number list

Results 29

Models table for series SVPT Series
Part No.	Rated Voltage (DC) (V)	Body Type	Capacitance (µF)	Polarity Type	E.S.R.-1 (Max. Value) (mΩ)	Rated Ripple Current (Rms) (mA)	Rated Voltage (V)	Leakage Current (Max.) (μA)	Operating Temperature Range (°C)	Tolerance on Capacitance (%)	Endurance (h)	Temperature Range (°C)	Body Diameter (mm)	Endurance (h)	Endurance@Temp.-1	Height (Max) (mm)	Size Code	Weight (Typ.) (g)	Rated Ripple Current-1 (mArms)	Rated Ripple Current-1 (temp.) (°C)	Forming & Packaging Feature	Rated Ripple Current-1 (freq.) (kHz)	ESR (mΩ)	ESR Frequency (kHz)	ESR Frequency (Hz)	Leakage Current [Max.] (μA)	Dissipation Factor [Max.]	Body Length (mm)	Minimum Packaging Quantity (piece)	Weight [Typ.] (g)
50SVPT68M	50	Surface mount type (vertical mount style)	68	Polar	20	4300	50	680	-55 to 105	-20 to 20	20000	-55 to 105	10	20000	20000@105°C	12.6	F12	1.4	4300	105	Embossed carrier taping (reel packing)	100	20	100	100	680	0.12	12.6	400	1.4
2R5SVPT1500M	2.5	Surface mount type (vertical mount style)	1500	Polar	10	5150	2.5	750	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	5150	105	Embossed carrier taping (reel packing)	100	10	100	100	750	0.12	11.9	400	0.86
16SVPT560M	16	Surface mount type (vertical mount style)	560	Polar	14	4950	16	1792	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	4950	105	Embossed carrier taping (reel packing)	100	14	100	100	1792	0.12	11.9	400	0.86
20SVPT180M	20	Surface mount type (vertical mount style)	180	Polar	25	3200	20	720	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	6.9	E7	0.6	3200	105	Embossed carrier taping (reel packing)	100	25	100	100	720	0.12	6.9	1000	0.55
20SVPT560M	20	Surface mount type (vertical mount style)	560	Polar	12	5400	20	2240	-55 to 105	-20 to 20	20000	-55 to 105	10	20000	20000@105°C	12.6	F12	1.4	5400	105	Embossed carrier taping (reel packing)	100	12	100	100	2240	0.12	12.6	400	1.4
25SVPT180M	25	Surface mount type (vertical mount style)	180	Polar	16	4650	25	900	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	4650	105	Embossed carrier taping (reel packing)	100	16	100	100	900	0.12	11.9	400	0.86
25SVPT330M	25	Surface mount type (vertical mount style)	330	Polar	14	5000	25	1650	-55 to 105	-20 to 20	20000	-55 to 105	10	20000	20000@105°C	12.6	F12	1.4	5000	105	Embossed carrier taping (reel packing)	100	14	100	100	1650	0.12	12.6	400	1.4
35SVPT39M	35	Surface mount type (vertical mount style)	39	Polar	30	2800	35	273	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	6.9	E7	0.6	2800	105	Embossed carrier taping (reel packing)	100	30	100	100	273	0.12	6.9	1000	0.55
20SVPT390M	20	Surface mount type (vertical mount style)	390	Polar	14	4950	20	1560	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	4950	105	Embossed carrier taping (reel packing)	100	14	100	100	1560	0.12	11.9	400	0.86
35SVPT82M	35	Surface mount type (vertical mount style)	82	Polar	20	4000	35	574	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	4000	105	Embossed carrier taping (reel packing)	100	20	100	100	574	0.12	11.9	400	0.86

Models table for series SVPT Series
Part No.	Rated Voltage (DC) (V)	Body Type	Capacitance (µF)	Polarity Type	E.S.R.-1 (Max. Value) (mΩ)	Rated Ripple Current (Rms) (mA)	Rated Voltage (V)	Leakage Current (Max.) (μA)	Operating Temperature Range (°C)	Tolerance on Capacitance (%)	Endurance (h)	Temperature Range (°C)	Body Diameter (mm)	Endurance (h)	Endurance@Temp.-1	Height (Max) (mm)	Size Code	Weight (Typ.) (g)	Rated Ripple Current-1 (mArms)	Rated Ripple Current-1 (temp.) (°C)	Forming & Packaging Feature	Rated Ripple Current-1 (freq.) (kHz)	ESR (mΩ)	ESR Frequency (kHz)	ESR Frequency (Hz)	Leakage Current [Max.] (μA)	Dissipation Factor [Max.]	Body Length (mm)	Minimum Packaging Quantity (piece)	Weight [Typ.] (g)
50SVPT68M	50	Surface mount type (vertical mount style)	68	Polar	20	4300	50	680	-55 to 105	-20 to 20	20000	-55 to 105	10	20000	20000@105°C	12.6	F12	1.4	4300	105	Embossed carrier taping (reel packing)	100	20	100	100	680	0.12	12.6	400	1.4
2R5SVPT1500M	2.5	Surface mount type (vertical mount style)	1500	Polar	10	5150	2.5	750	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	5150	105	Embossed carrier taping (reel packing)	100	10	100	100	750	0.12	11.9	400	0.86
16SVPT560M	16	Surface mount type (vertical mount style)	560	Polar	14	4950	16	1792	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	4950	105	Embossed carrier taping (reel packing)	100	14	100	100	1792	0.12	11.9	400	0.86
20SVPT180M	20	Surface mount type (vertical mount style)	180	Polar	25	3200	20	720	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	6.9	E7	0.6	3200	105	Embossed carrier taping (reel packing)	100	25	100	100	720	0.12	6.9	1000	0.55
20SVPT560M	20	Surface mount type (vertical mount style)	560	Polar	12	5400	20	2240	-55 to 105	-20 to 20	20000	-55 to 105	10	20000	20000@105°C	12.6	F12	1.4	5400	105	Embossed carrier taping (reel packing)	100	12	100	100	2240	0.12	12.6	400	1.4
25SVPT180M	25	Surface mount type (vertical mount style)	180	Polar	16	4650	25	900	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	4650	105	Embossed carrier taping (reel packing)	100	16	100	100	900	0.12	11.9	400	0.86
25SVPT330M	25	Surface mount type (vertical mount style)	330	Polar	14	5000	25	1650	-55 to 105	-20 to 20	20000	-55 to 105	10	20000	20000@105°C	12.6	F12	1.4	5000	105	Embossed carrier taping (reel packing)	100	14	100	100	1650	0.12	12.6	400	1.4
35SVPT39M	35	Surface mount type (vertical mount style)	39	Polar	30	2800	35	273	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	6.9	E7	0.6	2800	105	Embossed carrier taping (reel packing)	100	30	100	100	273	0.12	6.9	1000	0.55
20SVPT390M	20	Surface mount type (vertical mount style)	390	Polar	14	4950	20	1560	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	4950	105	Embossed carrier taping (reel packing)	100	14	100	100	1560	0.12	11.9	400	0.86
35SVPT82M	35	Surface mount type (vertical mount style)	82	Polar	20	4000	35	574	-55 to 105	-20 to 20	20000	-55 to 105	8	20000	20000@105°C	11.9	E12	0.9	4000	105	Embossed carrier taping (reel packing)	100	20	100	100	574	0.12	11.9	400	0.86
