Narrow (Fine) Pitch Connectors

High-Reliability Contact Structure.

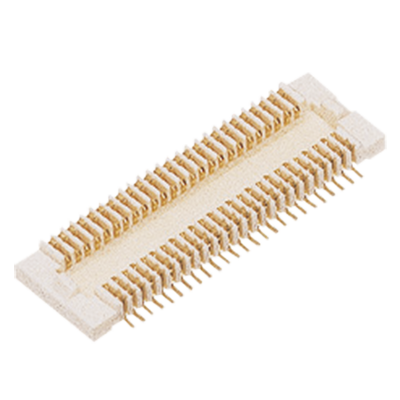

Panasonic’s industry leading “tough contact” design provides customers with the reliability that is required when developing the latest computer or wearable device. Our Narrow (Fine) Pitch Connectors line-up includes both Board-to-Board and Board-to-FPC options. Backed by our staff of technical engineers, Panasonic offers a full “hands on” solution from designing-in assistance to manufacturing. Discover how Panasonic Narrow Pitch Connectors can elevate your applications.

Series table for lineup Narrow (Fine) Pitch Connectors
Series/Type	Board To FPC	Short Width	No. of Pins	Rated Current	0.5mm Pitch	Mated Height	0.35mm Pitch	Board To Board	0.4mm Pitch	Tough Contact
S35(0.35mm pitch)	1	1.7mm	6 to 60	Max. 0.3A/pin contact (Max. 5 A at total pin contacts)		0.6mm/0.8mm	1			1
A35US(0.35mm pitch)	1	2.2mm	10 to 60	0.3A/pin contact (Max. 5 A at total pin contacts)		0.6mm	1			1
A35S(0.35mm pitch)	1	2.5mm	10 to 100	0.25A/pin contact (Max. 4 A at total pin contacts)		0.8mm	1			1
P35S(0.35mm pitch)	1	3.6mm	40 to 100	0.25A/pin contact (Max. 4 A at total pin contacts)		1.5mm	1	1		1
A4US(0.4mm pitch)	1	2.0mm/2.2mm	10 to 80	0.3A/pin contact (Max. 5 A at total pin contacts)		0.6mm/0.8mm			1	1
A4S(0.4mm pitch)	1	2.5mm	10 to 80	0.3A/pin contact (Max. 5 A at total pin contacts)		0.8mm/1.0mm			1	1
F4S(0.4mm pitch)	1	3.6mm	10 to 80	0.3A/pin contact (Max. 5 A at total pin contacts)		1.0mm			1	1
P4S(0.4mm pitch)	1	3.6mm	10 to 100	0.3A/pin contact (Max. 5 A at total pin contacts)		1.5mm to 3.0mm		1	1	1
P5K/P5KS(0.5mm pitch)		5.4mm/5.8mm	20 to 120	Mated height: 3.0 mm 0.5A/pin contact (Max. 10 A at total pin contacts) Mated height: 4.0 mm to 9.0 mm 0.5A/pin contact (Max. 16 A at total pin contacts)	1	3.0mm to 9.0mm		1		1
P5KF(0.5mm pitch)	1	5.8mm	10 to 100	0.5A/pin contact (Max. 10 A at total pin contacts)	1	1.5mm/2.0mm/2.5mm		1		1

Series table for lineup Narrow (Fine) Pitch Connectors
Series/Type	Board To FPC	Short Width	No. of Pins	Rated Current	0.5mm Pitch	Mated Height	0.35mm Pitch	Board To Board	0.4mm Pitch	Tough Contact
S35(0.35mm pitch)	1	1.7mm	6 to 60	Max. 0.3A/pin contact (Max. 5 A at total pin contacts)		0.6mm/0.8mm	1			1
A35US(0.35mm pitch)	1	2.2mm	10 to 60	0.3A/pin contact (Max. 5 A at total pin contacts)		0.6mm	1			1
A35S(0.35mm pitch)	1	2.5mm	10 to 100	0.25A/pin contact (Max. 4 A at total pin contacts)		0.8mm	1			1
P35S(0.35mm pitch)	1	3.6mm	40 to 100	0.25A/pin contact (Max. 4 A at total pin contacts)		1.5mm	1	1		1
A4US(0.4mm pitch)	1	2.0mm/2.2mm	10 to 80	0.3A/pin contact (Max. 5 A at total pin contacts)		0.6mm/0.8mm			1	1
A4S(0.4mm pitch)	1	2.5mm	10 to 80	0.3A/pin contact (Max. 5 A at total pin contacts)		0.8mm/1.0mm			1	1
F4S(0.4mm pitch)	1	3.6mm	10 to 80	0.3A/pin contact (Max. 5 A at total pin contacts)		1.0mm			1	1
P4S(0.4mm pitch)	1	3.6mm	10 to 100	0.3A/pin contact (Max. 5 A at total pin contacts)		1.5mm to 3.0mm		1	1	1
P5K/P5KS(0.5mm pitch)		5.4mm/5.8mm	20 to 120	Mated height: 3.0 mm 0.5A/pin contact (Max. 10 A at total pin contacts) Mated height: 4.0 mm to 9.0 mm 0.5A/pin contact (Max. 16 A at total pin contacts)	1	3.0mm to 9.0mm		1		1
P5KF(0.5mm pitch)	1	5.8mm	10 to 100	0.5A/pin contact (Max. 10 A at total pin contacts)	1	1.5mm/2.0mm/2.5mm		1		1
