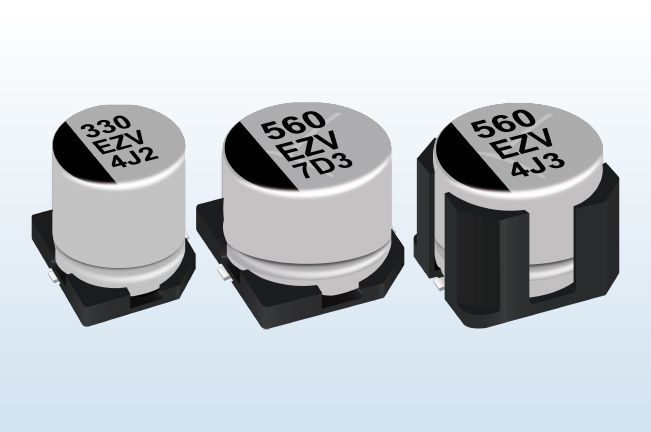

Polymer Hybrid Aluminum Electrolytic Capacitor

High Endurance and High Ripple Current

Panasonic’s Hybrid Capacitors combine the benefits of Aluminum Electrolytic and Specialty Polymer Capacitors resulting in a Capacitor featuring high endurance, low-ESR, high tolerance for ripple current, inrush currents and elevated temperature. Hybrid Capacitors are known for their stable electric characteristics at high frequencies while maximizing reliability. These Hybrid Capacitors are compact, allowing significant board space savings and vibration-proof parts are also available.

Hybrid Capacitors for MLCC Replacement

The Hybrid Capacitor product line features many suggested MLCC Alternative Series, which include EEH-ZAEEH-ZC, EEH-ZE, EEH-ZK, EEH-ZS, and EEH-ZF.

Series List

Results 7
Series table for lineup Polymer Hybrid Aluminum Electrolytic Capacitor
Series/TypeDatasheetOperating Temperature Range (°C)Rated Voltage Range (DC) (V)Capacitance Range (µF)Reach (Report of Confirmation) Body TypeEndurance (h)RoHS (Compliance Certificate)FeaturesAEC-Q200
-55 to +125
25 to 35
39 to 560
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Surface Mount Type
4000
RoHS compliant (Please refer to the Related Information.)
・Large capacitance
・Low ESR
・125℃,4000h guarantee
AEC-Q200 compliant
-55 to +125
25 to 63
150 to 560
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Surface Mount Type
4000
RoHS compliant (Please refer to the Related Information.)
・High temperature
・High ripple current
・125℃,4000h guarantee
AEC-Q200 compliant
-55 to +150
25 to 63
33 to 270
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Radial Lead Type
1000
RoHS compliant (Please refer to the Related Information.)
・High temperature
・150℃,1000h guarantee
AEC-Q200 compliant
-55 to +125
25 to 80
10 to 330
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Surface Mount Type
4000
RoHS compliant (Please refer to the Related Information.)
・High voltage (80V max)
・125℃,4000h guarantee

AEC-Q200 compliant
-55 to +105
25 to 80
10 to 330
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Surface Mount Type
10000
RoHS compliant (Please refer to the Related Information.)
・High voltage (80V max)
・105℃,10000h guarantee

AEC-Q200 compliant
-55 to +125
25 to 35
33 to 470
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Surface Mount Type
4000
RoHS compliant (Please refer to the Related Information.)
・Large capacitance
・High ripple current
・125℃,4000h guarantee
AEC-Q200 compliant
-55 to +145
25 to 63
33 to 330
SVHC non-inclusion (Definition of SVHC inclusion:0.1wt% or above per product.)
Surface Mount Type
2000(145℃)
4000(135℃)
RoHS compliant (Please refer to the Related Information.)
・High temperature
・High ripple current
・145℃,2000h guarantee
AEC-Q200 compliant
