Specification

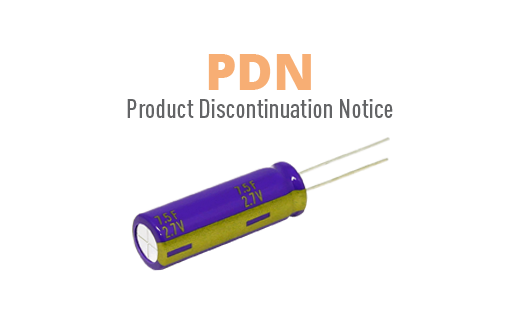

Specifications table for model EECHL0E755
ItemPerformance characteristics
Body TypeRadial lead type (cylindrical)
Rated Voltage (V)2.7
Capacitance (F)7.5
Capacitance Tolerance (%)-20 to 20
E.S.R.-1 (Max. Value) (Ω)0.03
Operating Temperature Range (°C)-40 to 70
Body Diameter (mm)10
Body Length (mm)10.5
Width (mm)10.5
Height (mm)32
Lead (Terminal) Pitch (mm)5
Endurance (h)2000
Forming & Packaging FeatureBulk (no lead/terminal forming), bag packing
Minimum Packaging Quantity (PCS.)200
Minimum Packaging Quantity (pieces)200
Minimum packaging quantity (piece)200
Weight (Typ.) (g)3.4

Stock Check

Stock check for product EECHL0E755
DistributorQuantityInventory Date
Digi-Key Electronics
United States
Tel. 1-800-344-4539
83801/26/2021
Newark, An Avnet Company
United States
Tel. 1-800-4-NEWARK
20001/26/2021
Future Electronics
Canada
Tel. 1-514-694-7710
20001/25/2021
Arrow Electronics
United States
Tel. 1-855-326-4757
20001/26/2021
Mouser Electronics Inc.
United States
Tel. 1-800-346-6873
19701/26/2021
