Electric Double Layer Capacitors (Gold): Multilayer Coin Type

Multilayer Coin Type design engineers Panasonic

Line Up

Body shapeSeries/TypeData SheetImageFeaturesCategory temp. range (℃)Endurance (h)Max. operating voltage (V.DC)Capacitance (F)RoHS (Compliance Certificate)REACH (Report of Confirmation)
Column active Filter
Close

Filter by Body shape

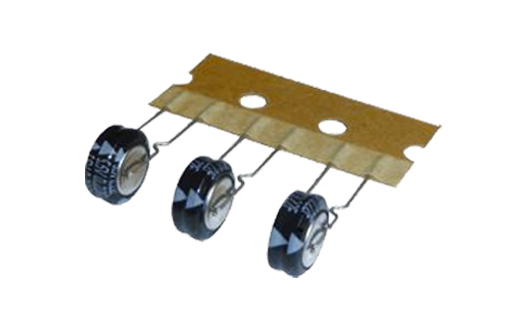

Multilayer Coin Type (Low temperature assured product)SE-N・5mm pitch lead taping-40 to +7010005.50.22CertificateReport of Confirmation
Multilayer Coin Type (Low temperature assured product)LF・85℃ 6000h-40 to +8560005.51.0CertificateReport of Confirmation
Multilayer Coin Type (Low temperature assured product)SG-N・Tabbed lead terminals-40 to +7010005.50.47 to 1.5CertificateReport of Confirmation
Multilayer Coin Type (Low temperature assured product)NF-N・Flat type,
・General purpose
-40 to +7010005.50.22 to 1.5CertificateReport of Confirmation
Multilayer Coin Type (Low temperature assured product)F-N・85℃ Flat type-40 to +8510005.50.10 to 1.0CertificateReport of Confirmation
Multilayer Coin Type (Low temperature assured product)RG-N・85℃ 2000h-40 to +8520003.60.22 to 1.5CertificateReport of Confirmation
Multilayer Coin Type (Low temperature assured product)RF-N・85℃ 2000h-40 to +8520005.50.10 to 1.0CertificateReport of Confirmation
Multilayer Coin Type (Low temperature assured product)SD-N・Tabbed lead terminals-40 to +7010005.50.22 to 0.33CertificateReport of Confirmation
Multilayer Coin TypeSG・Tabbed lead terminals-25 to +7010005.50.47 to 1.5CertificateReport of Confirmation
Multilayer Coin TypeSE・5mm pitch lead taping-25 to +7010005.50.22CertificateReport of Confirmation
Multilayer Coin TypeNF・Flat type
・General purpose
-25 to +7010005.50.22 to 1.5CertificateReport of Confirmation
Multilayer Coin TypeF・85℃ Flat type-25 to +8510005.50.10 to 1.0CertificateReport of Confirmation
Multilayer Coin TypeRG・85℃ 2000h-25 to +8520003.60.22 to 1.5CertificateReport of Confirmation
Multilayer Coin TypeRF・85℃ 2000h-25 to +8520005.50.10 to 1.0CertificateReport of Confirmation
